The recommended torque for the screw locks is 0.5-1.5 Nm (4-12 in-lbs). It's essential to follow this torque specification to ensure proper mating and prevent damage to the connector.
Yes, the 516-056-520-602 connector is designed to withstand high-vibration environments. EDAC Inc's connectors are tested to meet the requirements of IEC 61373, which includes vibration testing. However, it's essential to follow proper mounting and installation procedures to ensure the connector's reliability in such applications.
The operating temperature range of the 516-056-520-602 connector is -40°C to 125°C (-40°F to 257°F). This range is suitable for most industrial and commercial applications, but it's essential to verify the temperature range for specific use cases.
The 516-056-520-602 connector has a IP67 rating, which means it is protected against dust and temporary immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's not designed for continuous exposure to water or harsh chemicals. If you need a connector for such environments, consider EDAC Inc's other products with higher IP ratings or specialized coatings.
The 516-056-520-602 connector is designed for signal transmission up to 3.0 GHz. While it can support high-speed data transmission, it's essential to verify the specific requirements of your application and ensure the connector meets those needs. EDAC Inc offers other connectors with higher frequency ratings for more demanding applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
516-056-520-602 Overview

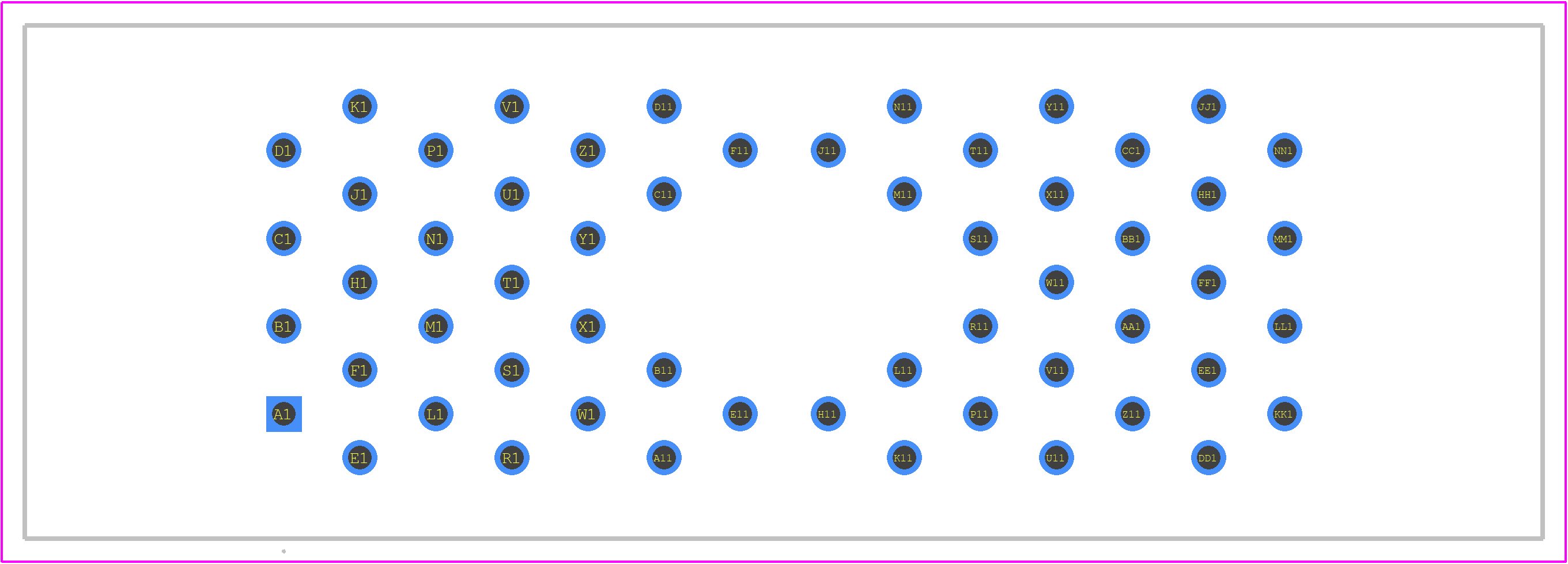

Use the download button to access the 516-056-520-602 schematic symbol, PCB footprint, and 3D model.
