The recommended torque for the screw locks is 0.5-1.5 Nm (0.36-1.06 lbf-in). It's essential to follow this torque specification to ensure proper mating and prevent damage to the connector.
Yes, the 516-090-520-402 connector is designed to withstand high-vibration environments. EDAC Inc's connectors are built with ruggedness in mind, making them suitable for use in applications with intense vibrations, such as in industrial, aerospace, or automotive environments.
The 516-090-520-402 connector is part of EDAC Inc's 516 series, which is designed to be compatible with other connectors within the same series. However, it's essential to verify the specific part number and configuration to ensure compatibility before mating different connectors.
The operating temperature range for the 516-090-520-402 connector is -40°C to 125°C (-40°F to 257°F). This range allows the connector to function reliably in various environmental conditions.
The 516-090-520-402 connector is designed to be resistant to harsh environments, including high humidity and exposure to certain chemicals. However, it's crucial to consult EDAC Inc's documentation and perform necessary testing to ensure the connector meets the specific requirements of your application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
516-090-520-402 Overview

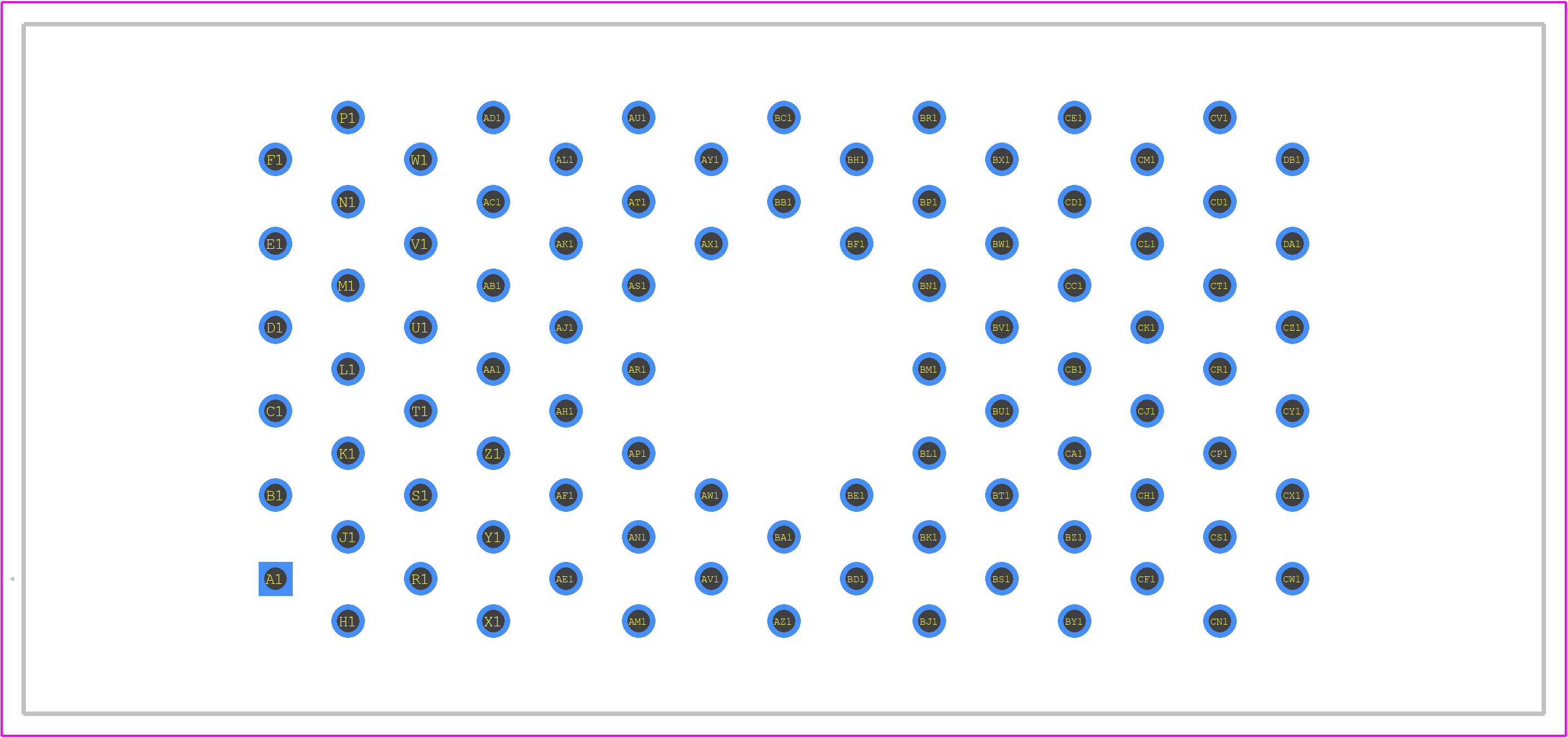

Use the download button to access the 516-090-520-402 schematic symbol, PCB footprint, and 3D model.
