516-AG11D-ES-LF footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

PCB Footprints

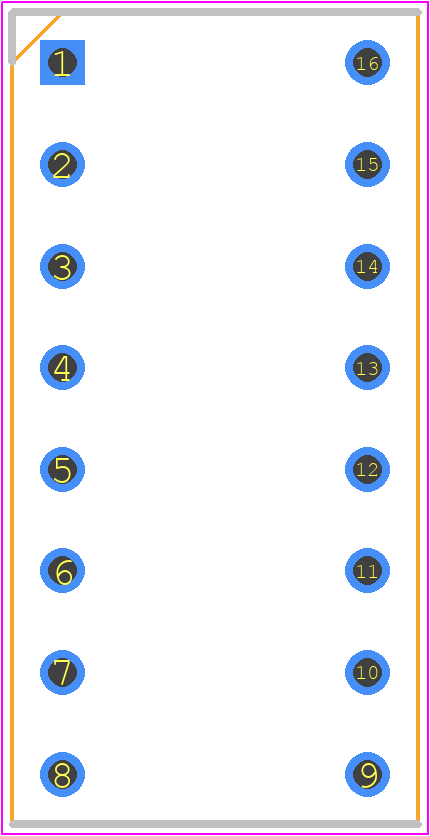

516-AG11D-ES-LF - TE Connectivity PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 516-AG11D-ES-LF

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 516-AG11D-ES-LF
Part Number 516-AG11D-ES-LF
Manufacturer TE Connectivity
Pin Count 16
Part Category Connector
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - 516-AG11D-ES-LF
Released Date Mar 12, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

516-AG11D-ES-LF Details

Manufacturer Part Number:
516-AG11D-ES-LF
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
TE Connectivity
YTEOL:
0
Additional Feature:
STANDARD: UL 94V-0
Body Depth:
0.18 inch
Body Length:
0.8 inch
Current Rating:
3 A
Device Socket Type:
IC SOCKET
Device Type Used On:
DIP16
Housing Material:
THERMOPLASTIC
Insulation Resistance:
5000000000 Ω
Mating Contact Pitch:
0.1 inch
Mounting Style:
STRAIGHT
Number of Contacts:
16
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-55 °C
PCB Contact Row Spacing:
0.30000000000000004 mm
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER

516-AG11D-ES-LF Frequently Asked Questions (FAQs)

The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals, but it's always best to consult the TE Connectivity application notes or contact their technical support for specific guidance.
Yes, the 516-AG11D-ES-LF is designed to withstand vibrations and is suitable for use in harsh environments. However, it's essential to ensure proper mounting and securement to prevent damage or disconnection.
The 516-AG11D-ES-LF has a sealed construction and is rated IP67, making it suitable for outdoor use. However, it's crucial to ensure that the connector is properly mated and sealed to maintain its environmental rating.
The 516-AG11D-ES-LF has an operating temperature range of -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications.
While the datasheet specifies a recommended wire gauge, it's possible to use a different gauge. However, it's essential to consult TE Connectivity's application notes or contact their technical support to ensure the connector can accommodate the desired wire gauge and to determine any potential performance impacts.

Trust Checks

Expert Contribution

System Verified

Community Approved

516-AG11D-ES-LF Overview

Use the download button to access the 516-AG11D-ES-LF schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 516-A, or try a keyword search, such as Sockets and Chip Carriers

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
