5167892-3 - TE Connectivity

Description: Body Features: Terminal Profile Standard | Configuration Features: PCB Mount Orientation Vertical | Number of Positions 8 | Contact Features: Mating Tab Thickness .032 INCH | Mating Tab Thickness .8 MM | PCB Contact Termination Area Plating Material Tin | Contact Base Material Phosphor Bronze | Contact Fabrication Stamped & Formed | PCB Contact Termination Area Plating Material Finish Matte | Mating Tab Width .25 INCH | PCB Contact Termination Area Plating Material Thickness 196.85 MICIN | Contact Current R

Download 5167892-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5167892-3 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

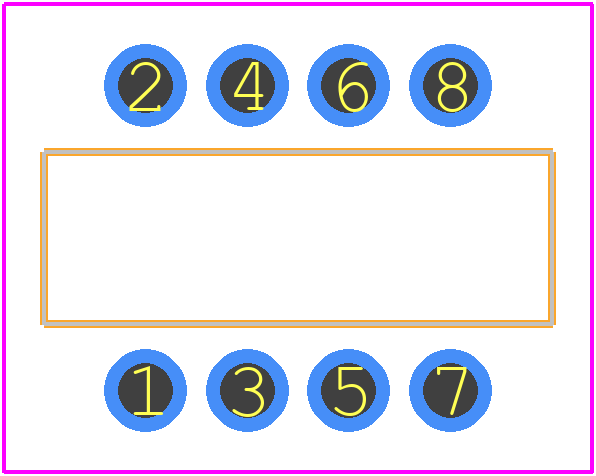

5167892-3 - TE Connectivity PCB footprint - Other - Other - 5167892-3-5
click to zoom
3D Models
5167892-3 - TE Connectivity - 3D model - Other - 5167892-3-5
click to zoom

5167892-3 Details

  • Manufacturer Part Number:

    5167892-3

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    17 Weeks, 1 Day

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0.24

  • Additional Feature:

    MATERIAL: PHOSPHOR BRONZE

  • Rated Current:

    40 A

  • Terminal and Terminal Block Type:

    POWER TERMINAL

5167892-3 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
  • Yes, the connector is designed for harsh environments and can withstand outdoor use, but it's essential to follow proper installation and sealing procedures to ensure IP67 rating.
  • While the datasheet specifies 24-18 AWG wire sizes, it's possible to use other wire sizes with proper derating and verification. However, it's recommended to consult with TE Connectivity or a qualified engineer to ensure compatibility and performance.
  • To ensure proper mating and unmating, follow the recommended mating and unmating forces, and use the correct tools and procedures to avoid damaging the connector or its components.
  • Yes, the connector is designed to withstand high-vibration environments, but it's essential to follow proper installation and mounting procedures to ensure reliable performance.
