5173278-2 footprint, schematic symbol and 3D model by TE Connectivity

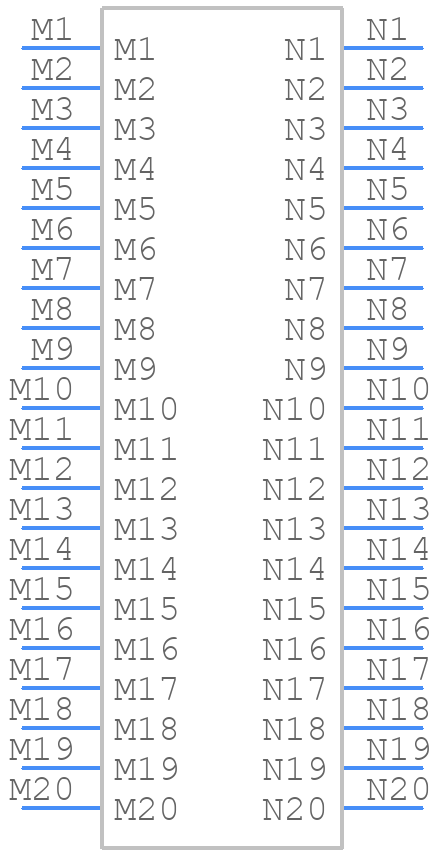

Symbol

click to zoom

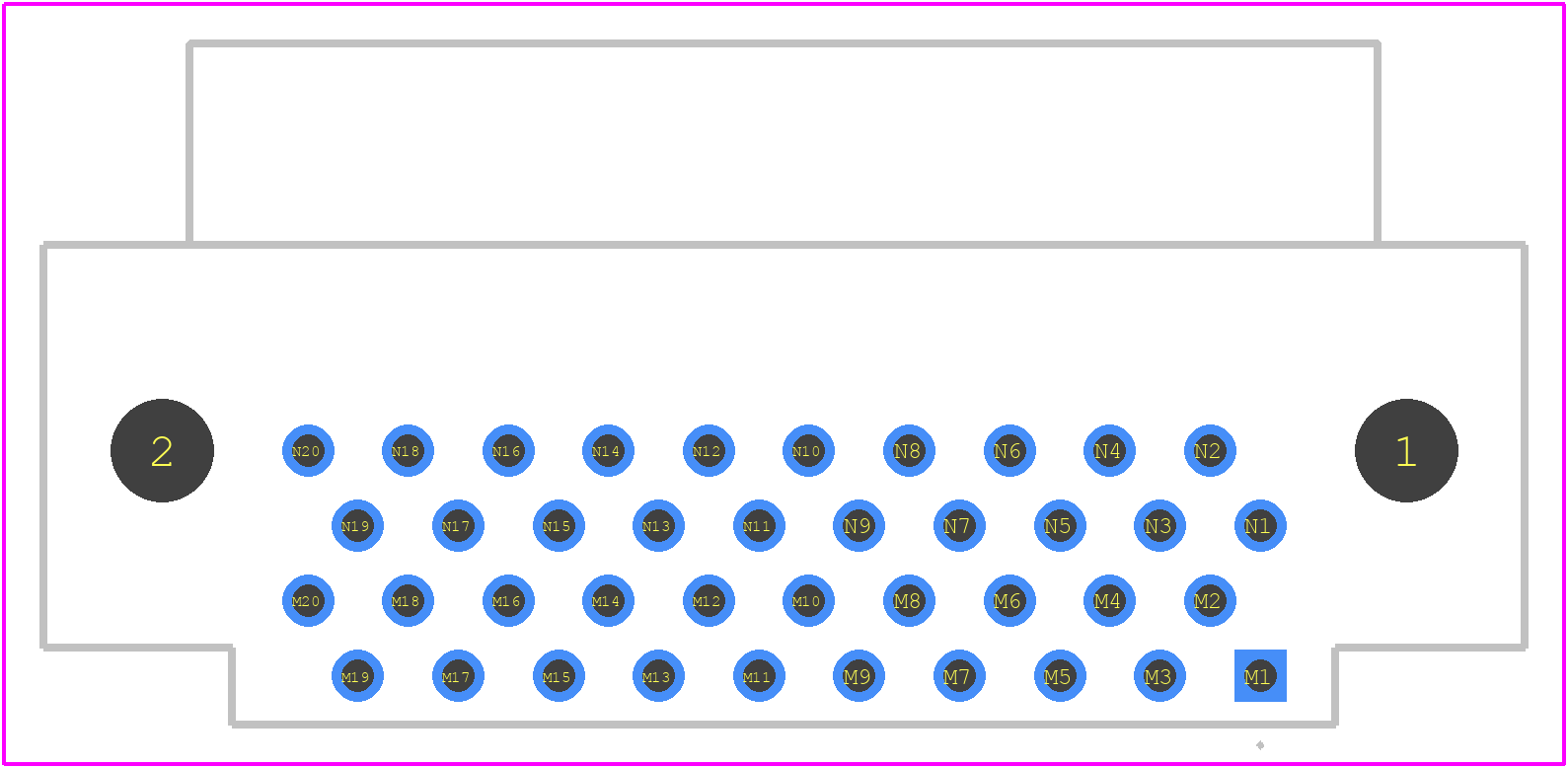

PCB Footprints

5173278-2 - TE Connectivity PCB footprint - Other - Other - 5173278-2-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 5173278-2
Part Number 5173278-2
Manufacturer TE Connectivity
Pin Count 40
Part Category Connector
Package Category Other
Footprint Name Other - 5173278-2-2
Released Date Jan 1, 2025
Last Modified Date Jan 2, 2025 5:35 PM UTC
Pinout / Pin List Click Here (Member Only)

5173278-2 Details

Manufacturer Part Number:
5173278-2
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
LEAD FREE
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
TE Connectivity
YTEOL:
0
Connector Type:
TELECOM AND DATACOM CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Gender:
MALE
Contact Material:
PHOSPHOR BRONZE
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
POLYBUTYLENE TEREPHTHALATE
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Option:
GENERAL PURPOSE
Termination Type:
SOLDER
Total Number of Contacts:
40
UL Flammability Code:
94V-0

5173278-2 Frequently Asked Questions (FAQs)

The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their support for specific guidance.
Yes, the 5173278-2 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
The operating temperature range for the 5173278-2 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
The 5173278-2 connector has a sealed design, making it suitable for outdoor or harsh environmental applications. However, it's crucial to ensure proper sealing and protection from moisture, dust, and other environmental factors.
Yes, the 5173278-2 connector is designed to be compatible with other TE Connectivity products and some third-party components. However, it's essential to verify compatibility and consult TE Connectivity's documentation or contact their support for specific guidance.

Trust Checks

Community Provided

System Verified

Community Approved

5173278-2 Overview

Use the download button to access the 5173278-2 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 51732, or try a keyword search, such as Telecom and Datacom Connectors
