5174683-8 - TE Connectivity

Description: Body Features: Primary Product Color Black | Connector Profile Standard | Configuration Features: Number of Positions 96 | PCB Mount Orientation Vertical | Number of Rows 4 | Contact Features: Contact Shape & Form Rectangular | Contact Base Material Phosphor Bronze | Contact Mating Area Plating Material Gold Flash | PCB Contact Termination Area Plating Material Tin over Nickel | Dimensions: Row-to-Row Spacing .1 INCH | Row-to-Row Spacing 2.54 MM | Housing Features: Housing Material Thermoplastic | Centerlin

Download 5174683-8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5174683-8 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

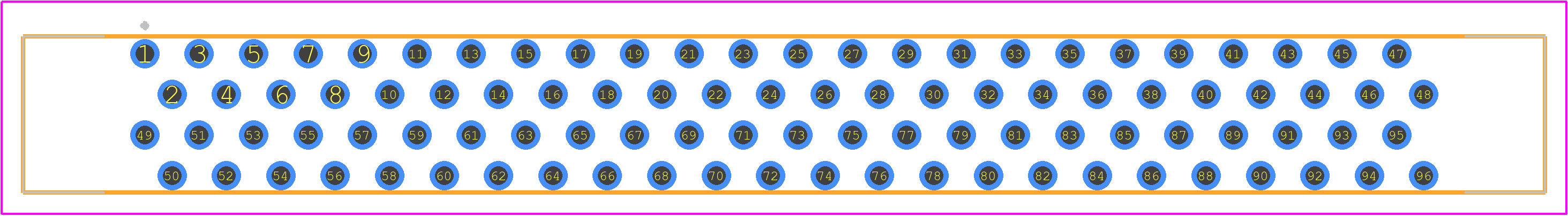

5174683-8 - TE Connectivity PCB footprint - Other - Other - 5174683-8
click to zoom
3D Models
5174683-8 - TE Connectivity - 3D model - Other - 5174683-8
click to zoom

5174683-8 Details

  • Manufacturer Part Number:

    5174683-8

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    16 Weeks, 4 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9.15

  • Board Mounting Option:

    SOLDERABLE RETENTION CLIPS

  • Body Breadth:

    0.287 inch

  • Body Depth:

    0.165 inch

  • Body Length:

    2.79 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    STAGGERED

  • Contact Style:

    BLADE PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mating Contact Pitch:

    0.05 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    4

  • Number of Ports:

    1

  • Number of Rows Loaded:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    1.905 mm

  • Panel Mount:

    NO

  • Reference Standard:

    UL

  • Terminal Length:

    0.122 inch

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    96

  • UL Flammability Code:

    94V-0

5174683-8 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure reliable connections and prevent damage to the connector.
  • Yes, the 5174683-8 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • While the datasheet specifies AWG 20-18 wire sizes, the connector can accommodate smaller wire sizes with the use of appropriate wire adapters or terminals. However, it's crucial to ensure the wire size and type meet the connector's electrical and mechanical requirements.
  • The 5174683-8 connector is designed for use in industrial environments and can operate in temperatures ranging from -40°C to 125°C. However, it's essential to consider the specific environmental conditions and ensure the connector meets the application's requirements. Additional protection or sealing may be necessary for extreme environments.
  • Yes, to ensure reliable connections and prevent damage to the connector or PCB, it's essential to follow proper PCB layout guidelines, including maintaining a minimum clearance of 1.5 mm between the connector and other components, and using a solder mask to prevent solder bridging.
