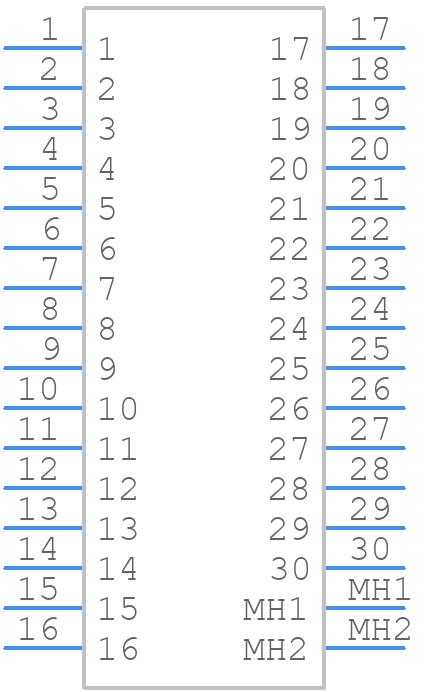

Symbol

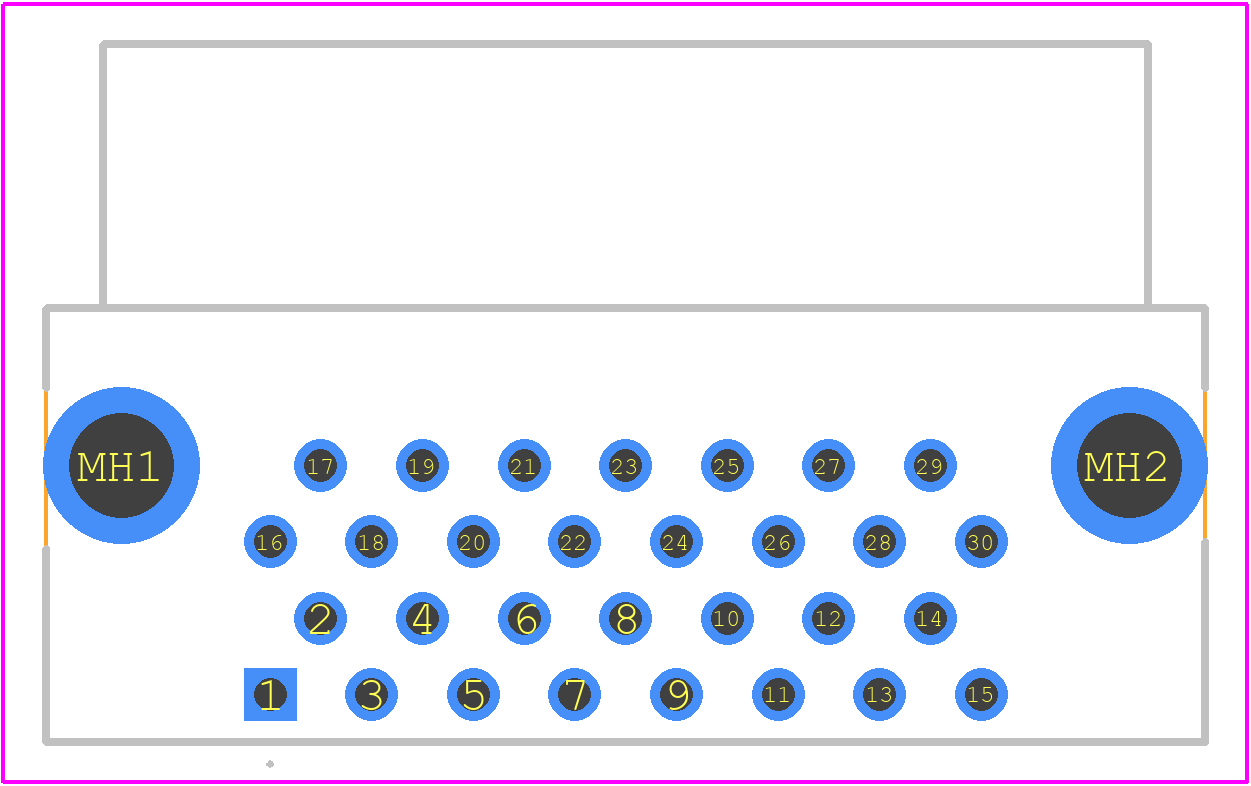

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 5175472-3
- Part Number 5175472-3
- Manufacturer TE Connectivity
- Pin Count 32
- Part Category Connector
- Package Category Other
- Footprint Name Other - 5175472-3-1
- Released Date Nov 18, 2022
- Last Modified Date Sep 25, 2025 10:23 AM UTC
- Pinout / Pin List Click Here (Member Only)
5175472-3 Details
-
Manufacturer Part Number:
5175472-3
-
Brand Name:
TE Connectivity
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Factory Lead Time:
14 Weeks, 2 Days
-
Manufacturer:
TE Connectivity
-
Additional Feature:
CHAMP
-
Body/Shell Style:
PLUG
-
Connector Type:
DOCKING CONNECTOR
5175472-3 Frequently Asked Questions (FAQs)
-
The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
-
Yes, the 5175472-3 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as rail, industrial, and automotive.
-
While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate a range of wire sizes. However, it's essential to consult with TE Connectivity or a qualified engineer to determine the suitability of the connector for specific wire sizes and applications.
-
The 5175472-3 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). This makes it suitable for use in a wide range of applications, including those with extreme temperature fluctuations.
-
The 5175472-3 connector has a sealed design that provides protection against moisture and contaminants. It meets the IP67 rating, making it suitable for use in harsh environments. However, it's essential to consult with TE Connectivity or a qualified engineer to determine the suitability of the connector for specific environmental conditions.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
5175472-3 Overview
Use the download button to access the 5175472-3 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 51754,
or try a keyword search, such as Telecom and Datacom Connectors
