5177983-1 - TE Connectivity

Description: 40 way 0.8mm pitch SMT socket,5mm H

Download 5177983-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

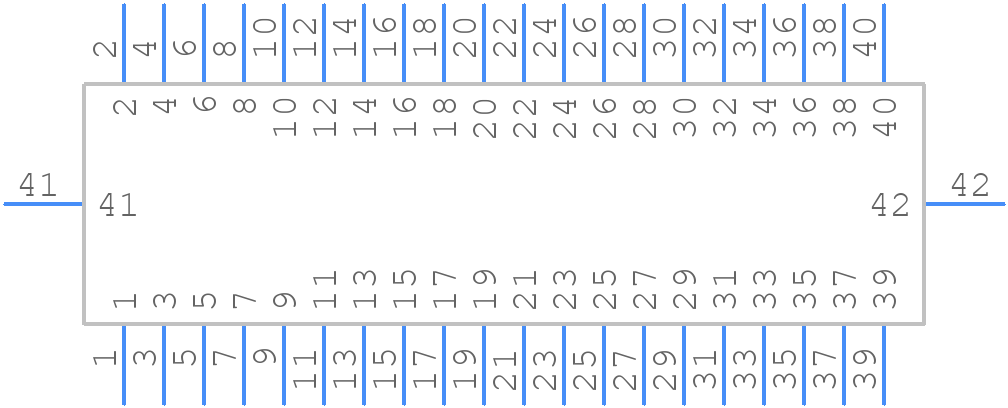

5177983-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
5177983-1 - TE Connectivity PCB footprint - Other - Other - 5177983-1
click to zoom
3D Models
5177983-1 - TE Connectivity - 3D model - Other - 5177983-1
click to zoom

5177983-1 Details

  • Manufacturer Part Number:

    5177983-1

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    7 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8.68

  • Connector Type:

    BOARD STACKING CONNECTOR

5177983-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 5177983-1 connector is designed to withstand vibrations and is suitable for use in high-vibration environments.
  • The operating temperature range for the 5177983-1 connector is -40°C to 125°C (-40°F to 257°F).
  • Yes, the 5177983-1 connector is designed for outdoor use and can withstand exposure to moisture and humidity.
  • No, the 5177983-1 connector is designed for use with wire gauges 24 AWG to 30 AWG. Using a larger wire gauge may not provide a reliable connection.
