5177985-5 - TE Connectivity

Description: Board to Board & Mezzanine Connectors .8FH,R05H.5 120,08/Sn,TR,SC

Download 5177985-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5177985-5 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

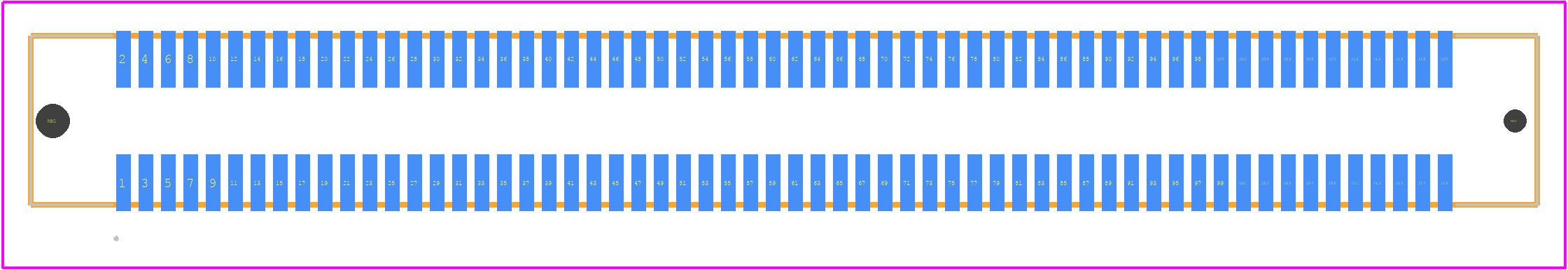

5177985-5 - TE Connectivity PCB footprint - Other - Other - 5177985-5-2
click to zoom
3D Models
5177985-5 - TE Connectivity - 3D model - Other - 5177985-5-2
click to zoom

5177985-5 Details

  • Manufacturer Part Number:

    5177985-5

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    5 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8.68

  • Connector Type:

    BOARD STACKING CONNECTOR

5177985-5 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their support for specific guidance.
  • Yes, the 5177985-5 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
  • The operating temperature range for the 5177985-5 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • The 5177985-5 connector has a sealed construction, making it suitable for outdoor or harsh environmental applications. However, it's crucial to ensure the connector is properly sealed and protected from moisture and contaminants.
  • Yes, the 5177985-5 connector is designed to be compatible with other TE Connectivity products. However, it's essential to verify compatibility and ensure proper mating and assembly with third-party components.
