51P22-01-1-16S - Grayhill

Description: Rotary Switches Rotary Switch PC Mnt 22.5deg

Download 51P22-01-1-16S Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 51P22-01-1-16S model

Email notifications will be applied after download.

Send part feedback

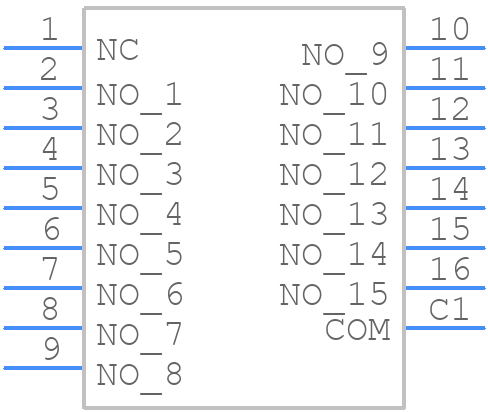

Symbol

51P22-01-1-16S - Grayhill - PCB symbol

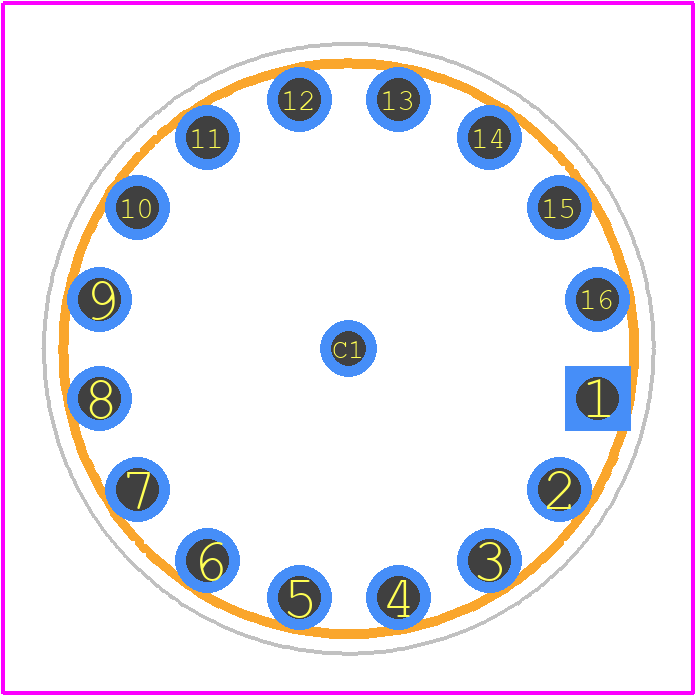

PCB Footprints

51P22-01-1-16S - Grayhill PCB footprint - Other - Other - 51SP22-01-1-16N

3D Models

51P22-01-1-16S - Grayhill - 3D model - Other - 51SP22-01-1-16N

Datasheet Download Datasheet
Stock & Prices Price & Stock for 51P22-01-1-16S
Part Number 51P22-01-1-16S
Manufacturer Grayhill
Pin Count 17
Part Category Switch
Package Category Other
Footprint Name Other - 51SP22-01-1-16N
Released Date Dec 1, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

51P22-01-1-16S Details

Manufacturer Part Number:
51P22-01-1-16S
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
USA
ECCN Code:
EAR99
HTS Code:
8536.50.70.00
Factory Lead Time:
18 Weeks
Manufacturer:
Grayhill Inc
YTEOL:
6
Actuator Type:
SHAFT TYPE
Body Height:
13.64 mm
Body Length or Diameter:
14.27 mm
Indexing Angle:
22.5 deg
JESD-609 Code:
e4
Mounting Feature:
THROUGH HOLE-STRAIGHT
Number of Positions:
16
Number of Switch Sections:
1
Surface Mount:
NO
Switch Action:
LATCHED
Switch Function:
SP16T
Switch Type:
ROTARY SWITCH
Terminal Finish:
Gold (Au) - with Nickel (Ni) barrier
Termination Type:
SOLDER

51P22-01-1-16S Frequently Asked Questions (FAQs)

The recommended torque for the 51P22-01-1-16S rotary switch is 0.5 to 1.5 in-lbs (0.056 to 0.169 Nm).
Yes, the 51P22-01-1-16S is sealed to IP67 standards, providing protection against dust and water ingress.
The operating temperature range of the 51P22-01-1-16S is -20°C to 85°C (-4°F to 185°F).
The 51P22-01-1-16S can be mounted on a PCB or a panel, depending on the application requirements.
The 51P22-01-1-16S has a life expectancy of 10,000 to 20,000 cycles, depending on the operating conditions.

Trust Checks

Expert Contribution

System Verified

Community Approved

51P22-01-1-16S Overview

Use the download button to access the 51P22-01-1-16S schematic symbol, PCB footprint, and 3D model.
