The recommended torque for assembling the 51SP22-01-1-15S switch is 5-7 in-lbs (0.56-0.79 Nm).
Yes, the 51SP22-01-1-15S switch is sealed to IP67 standards, protecting it from dust and water ingress.
The operating temperature range of the 51SP22-01-1-15S switch is -20°C to 85°C (-4°F to 185°F).
Yes, Grayhill Inc offers customization options for the 51SP22-01-1-15S switch, including different shaft lengths and terminations. Contact Grayhill for more information.
Yes, the 51SP22-01-1-15S switch is compliant with RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulations.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
51SP22-01-1-15S Overview

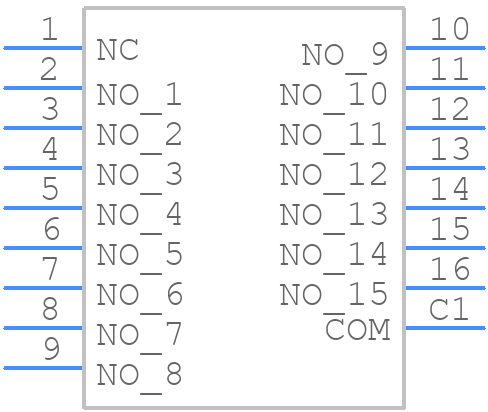

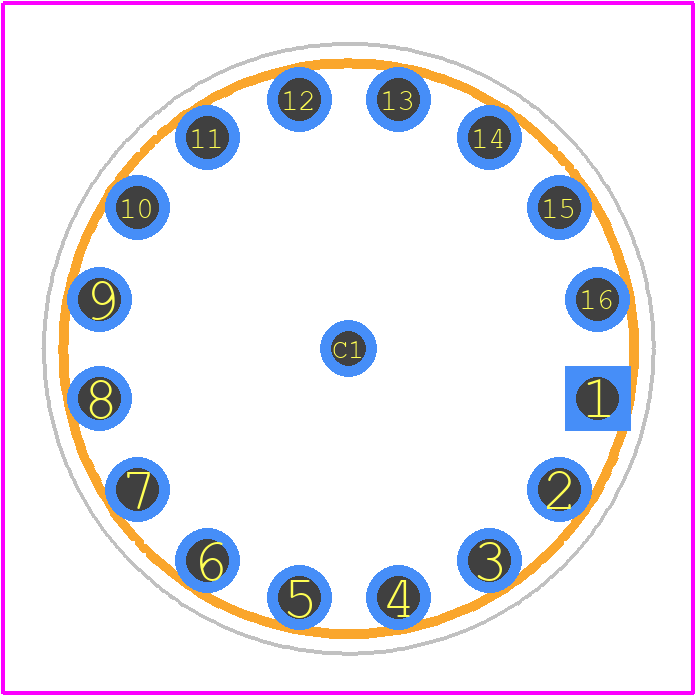

Use the download button to access the 51SP22-01-1-15S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 51SP2,
or try a keyword search, such as Rotary Switches
