520-AG11D-LF - TE Connectivity

Description: IC & Component Sockets DIP .3CL 20P S/M CFRM AU/SN

Download 520-AG11D-LF Model
Schematic symbol is unavailable for download
PCB footprint is unavailable for download
3D model is unavailable for download
PCB Footprints

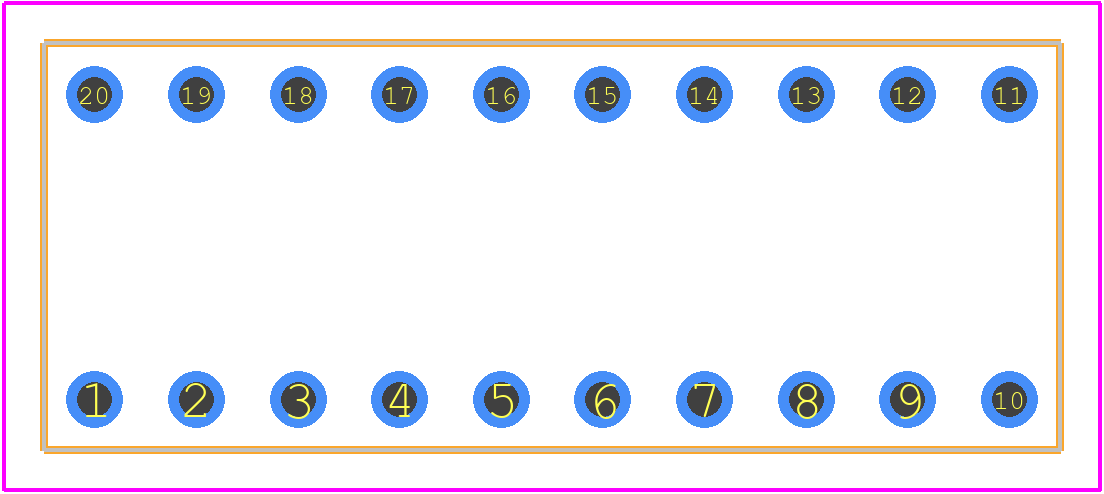

520-AG11D-LF - TE Connectivity PCB footprint - Other - Other - 520-AG11D-LF-4
click to zoom
3D Models
520-AG11D-LF - TE Connectivity  - 3D model - Other - 520-AG11D-LF-4
click to zoom

520-AG11D-LF Details

  • Manufacturer Part Number:


  • Rohs Code:


  • Part Life Cycle Code:


  • Reach Compliance Code:


  • ECCN Code:


  • HTS Code:


  • Manufacturer:

    TE Connectivity

  • YTEOL:


  • Additional Feature:

    STANDARD: UL 94V-0

  • Body Depth:

    0.135 inch

  • Body Length:

    1 inch

  • Current Rating:

    3 A

  • Device Socket Type:


  • Housing Material:


  • Insulation Resistance:

    5000000000 Ω

  • Mating Contact Pitch:

    0.1 inch

  • Mounting Style:


  • Number of Contacts:


  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • PCB Contact Row Spacing:

    0.30000000000000004 mm

  • Terminal Pitch:

    2.54 mm

  • Termination Type:


Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved

520-AG11D-LF Overview

Use the download button to access the 520-AG11D-LF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 520-A, or try a keyword search, such as Sockets and Chip Carriers
