- Part Number 52207-1985
- Manufacturer Molex
- Pin Count 21
- Part Category Connector
- Package Category Other
- Footprint Name Other - MOLEX_52207-1985
- Released Date Jan 11, 2017
- Last Modified Date May 19, 2025 4:42 PM UTC
- Pinout / Pin List Click Here (Member Only)
52207-1985 Details
-
Manufacturer Part Number:
52207-1985
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
LEAD FREE
-
Country Of Origin:
Mainland China, Malaysia
-
ECCN Code:
EAR99
-
Factory Lead Time:
21 Weeks
-
Manufacturer:
Molex
-
YTEOL:
7.55
-
Additional Feature:
ZIF
52207-1985 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
-
Yes, the 52207-1985 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
-
The 52207-1985 connector has a plastic housing with a moderate level of environmental protection. While it can withstand some exposure to moisture and dust, it's not recommended for direct exposure to harsh outdoor environments or extreme temperatures. For outdoor or harsh environmental use, consider using a connector with a higher IP rating or additional protection measures.
-
While the datasheet recommends using AWG 20-24 wires, it's possible to use other wire sizes with some limitations. However, using smaller or larger wires may affect the connector's performance, reliability, and durability. Consult with Molex or a qualified engineer to determine the feasibility of using alternative wire sizes.
-
Yes, to ensure reliable connections and prevent damage to the connector or PCB, follow these layout considerations: maintain a minimum clearance of 1.5 mm between the connector and nearby components, use a solder mask to prevent solder bridging, and ensure the PCB is designed to accommodate the connector's footprint and pinout.
Trust Checks
System Verified
52207-1985 Overview

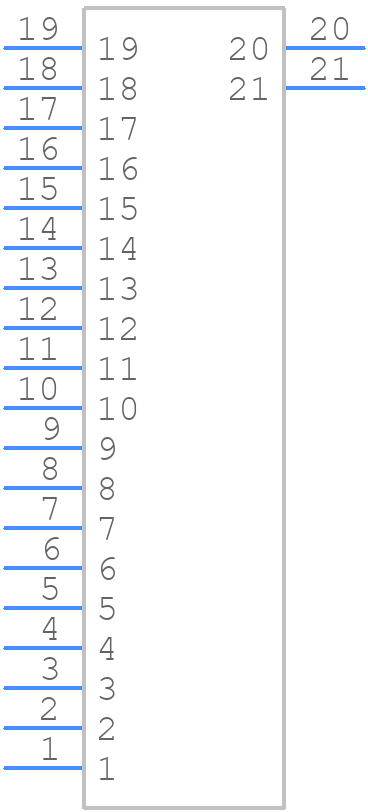

Use the download button to access the 52207-1985 schematic symbol, PCB footprint, and 3D model.
