The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
Yes, the 52207-2460 is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
The operating temperature range for the 52207-2460 is -40°C to 105°C (-40°F to 221°F).
Yes, the 52207-2460 is designed for outdoor use and can withstand exposure to moisture and humidity.
No, the 52207-2460 is designed for use with wire gauges 24 AWG to 30 AWG. Using a larger wire gauge may not provide a secure connection.
Trust Checks
No trust score is available for this model.
Trust Score Unavailable
Sponsored
52207-2460 Overview

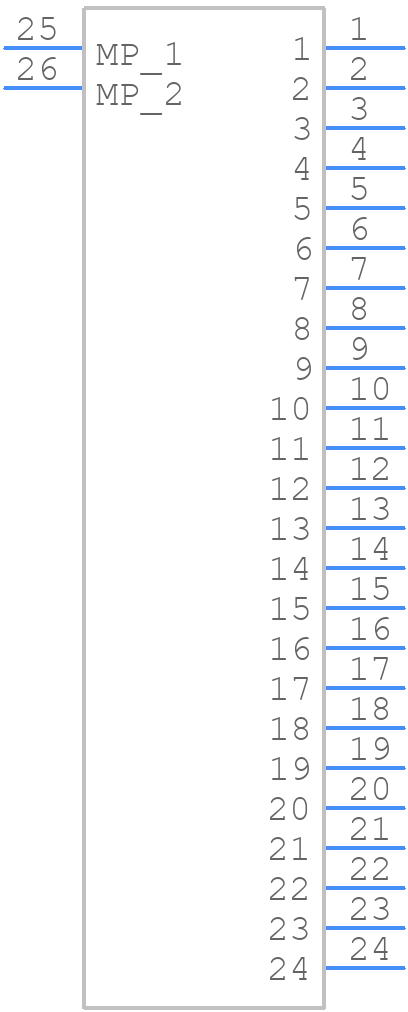

Use the download button to access the 52207-2460 3D model. You can still request or build the schematic symbol and PCB footprint by using the respective build or request forms on this page.
To find more CAD model downloads similar to this part, try a partial part number search, like 52207,
or try a keyword search, such as Headers and Edge Type Connectors
About Molex
Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
