52271-1579 - Molex

Description: Connector 1.0mm, FFC/FPC r/a,SMT,ZIF,15w Molex FFC/FPC SMT Series 1mm Pitch 15 Way 1 Row Right Angle SMT Female FPC Connector, Tin Bismuth Alloy Plated Contacts

Download 52271-1579 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

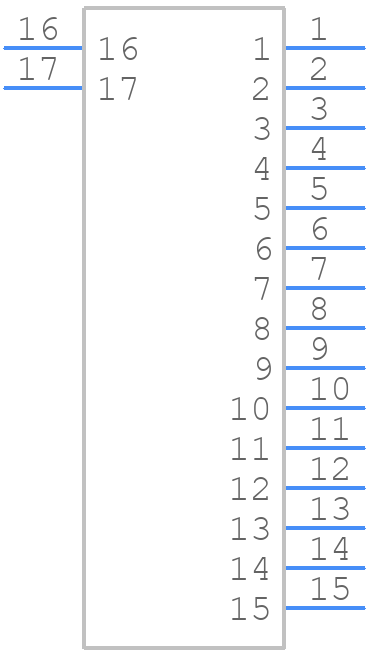

52271-1579 - Molex - PCB symbol
click to zoom
PCB Footprints
52271-1579 - Molex PCB footprint - Other - Other - 52271-1579
click to zoom
3D Models
52271-1579 - Molex - 3D model - Other - 52271-1579
click to zoom

52271-1579 Details

  • Manufacturer Part Number:

    52271-1579

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    Molex

  • YTEOL:

    7.3

  • Additional Feature:

    ZIF, BOTTOM CONTACT STYLE

  • Body Breadth:

    0.118 inch

  • Body Depth:

    0.35 inch

  • Body Length:

    0.839 inch

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin/Bismuth (Sn/Bi)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    BELLOWED TYPE

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    500VAC V

  • Durability:

    30 Cycles

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insertion Force-Max:

    ZIF N

  • Insulation Resistance:

    100000000 Ω

  • Insulator Color:

    NATURAL

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e6

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.039 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Plating Thickness:

    4u inch

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    0.5 A

  • Reference Standard:

    UL, CSA

  • Terminal Pitch:

    1 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    15

  • UL Flammability Code:

    94V-0

  • Withdrawl Force-Min:

    ZIF N

52271-1579 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (5-7 in-lbs). This information can be found in the Molex application notes or by contacting their technical support.
  • Yes, the 522711579 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) according to IEC 60068-2-6. However, it's recommended to consult with Molex or perform additional testing to ensure the connector meets the specific requirements of your application.
  • The operating temperature range for the 522711579 connector is -40°C to 105°C (-40°F to 221°F). This information can be found in the datasheet, but it's essential to note that the temperature range may vary depending on the specific application and environmental conditions.
  • The 522711579 connector has a sealed design that provides some protection against moisture and contaminants. However, it's not designed for use in extremely harsh environments. If your application requires exposure to high humidity, chemicals, or other environmental stressors, you should consult with Molex or consider using a more specialized connector.
  • While the datasheet recommends using AWG 20-24 wire, it's possible to use other wire sizes with the 522711579 connector. However, you should consult with Molex or perform additional testing to ensure the connector can accommodate the desired wire size and meet the required electrical and mechanical performance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

52271-1579 Overview

Use the download button to access the 52271-1579 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 52271, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
