5244THCDB - Apem

Description: Toggle Switches DP3T 0.4VA 20VAC/DC 10.5mm On-On-On

Download 5244THCDB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5244THCDB - Apem - PCB symbol
click to zoom
PCB Footprints

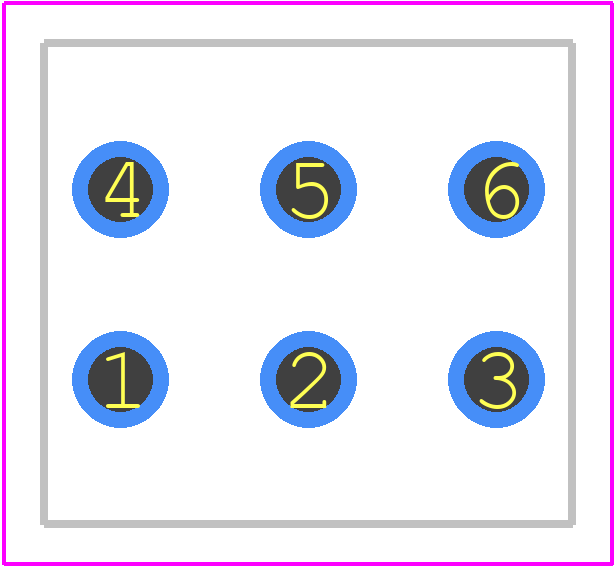

5244THCDB - Apem PCB footprint - Other - Other - 5244THCDB-1
click to zoom
3D Models
5244THCDB - Apem - 3D model - Other - 5244THCDB-1
click to zoom

5244THCDB Details

  • Manufacturer Part Number:

    5244THCDB

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    UK

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.65

  • Manufacturer:

    APEM Inc

  • YTEOL:

    8

  • Actuator Type:

    STANDARD TYPE

  • Additional Feature:

    PANEL MOUNT-THREADED ALSO AVAILABLE

  • Body Breadth:

    12 mm

  • Body Height:

    13.3 mm

  • Body Length or Diameter:

    13.2 mm

  • Contact (AC) Max Rating R Load:

    .02A@20VAC

  • Contact Current(AC)-Max:

    0.02 A

  • Contact Current(DC)-Max:

    0.02 A

  • Contact (DC) Max Rating R Load:

    .02A@20VDC

  • Contact Voltage(AC)-Max:

    20 V

  • Contact Voltage(DC)-Max:

    20 V

  • Electrical Life:

    100000 Cycle(s)

  • JESD-609 Code:

    e4

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Sealing:

    EPOXY TERMINAL SEALED

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    DP3T

  • Switch Type:

    TOGGLE SWITCH

  • Terminal Finish:

    Gold (Au)

  • Termination Type:

    SOLDER

5244THCDB Frequently Asked Questions (FAQs)

  • APEM recommends a torque of 0.4 Nm to 0.6 Nm for the 5244THCDB switches to ensure proper operation and prevent damage.
  • Yes, the 5244THCDB is designed to withstand high-vibration environments, but it's recommended to consult APEM's vibration testing data and perform additional testing to ensure the switch meets your specific application requirements.
  • The 5244THCDB has an operating temperature range of -20°C to 85°C, but it's recommended to consult the datasheet for specific temperature ratings and derating information.
  • The 5244THCDB has a IP67 rating, which means it's protected against dust and temporary immersion in water, but it's recommended to consult APEM's environmental testing data and perform additional testing to ensure the switch meets your specific application requirements.
  • The 5244THCDB is designed to operate up to 10,000 feet (3,048 meters) above sea level, but it's recommended to consult APEM's high-altitude testing data and perform additional testing to ensure the switch meets your specific application requirements.
