5246CDB - Apem

Description: DP Toggle Switch On-On, 0.4 A@ 20 V, PCB

Download 5246CDB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5246CDB - Apem - PCB symbol
click to zoom

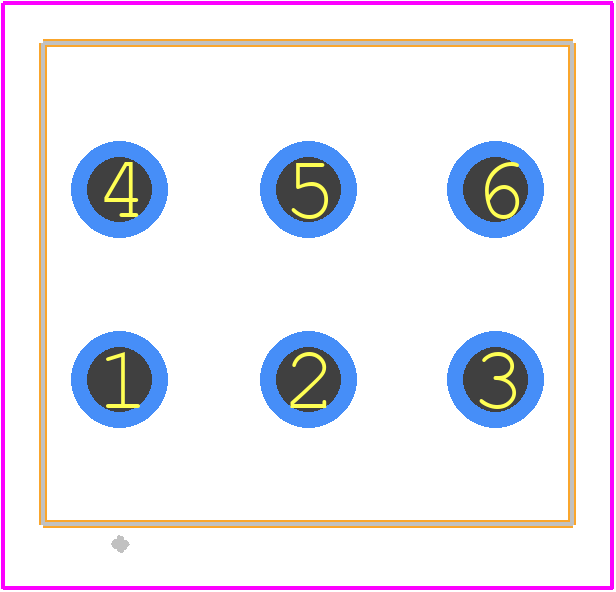

PCB Footprints
5246CDB - Apem PCB footprint - Other - Other - 5246CDB
click to zoom
3D Models
5246CDB - Apem - 3D model - Other - 5246CDB
click to zoom

5246CDB Details

  • Manufacturer Part Number:

    5246CDB

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    UK

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.65

  • Manufacturer:

    APEM Inc

  • YTEOL:

    8

  • Actuator Type:

    STANDARD TYPE

  • Additional Feature:

    PANEL MOUNT-THREADED ALSO AVAILABLE

  • Body Breadth:

    12 mm

  • Body Height:

    13.3 mm

  • Body Length or Diameter:

    13.2 mm

  • Contact (AC) Max Rating R Load:

    .02A@20VAC

  • Contact Current(AC)-Max:

    0.02 A

  • Contact Current(DC)-Max:

    0.02 A

  • Contact (DC) Max Rating R Load:

    .02A@20VDC

  • Contact Voltage(AC)-Max:

    20 V

  • Contact Voltage(DC)-Max:

    20 V

  • Electrical Life:

    100000 Cycle(s)

  • JESD-609 Code:

    e4

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Sealing:

    EPOXY TERMINAL SEALED

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    DPDT

  • Switch Type:

    TOGGLE SWITCH

  • Terminal Finish:

    Gold (Au)

  • Termination Type:

    SOLDER

5246CDB Frequently Asked Questions (FAQs)

  • APEM recommends a torque of 0.5 Nm to 1.5 Nm for the 5246CDB switch's actuator to ensure proper operation and prevent damage.
  • Yes, the 5246CDB is designed to withstand high-vibration environments and meets the IEC 61373 Cat 1, Class B standard for vibration resistance.
  • The 5246CDB has a sealed construction and is resistant to many harsh chemicals, but it's recommended to consult APEM's chemical resistance chart or contact their technical support for specific compatibility information.
  • APEM recommends cleaning the 5246CDB with a soft, dry brush or a lint-free cloth and mild soap solution. Avoid using harsh chemicals, abrasive materials, or high-pressure washes that may damage the switch.
  • Yes, APEM offers customization options for the 5246CDB, including custom actuator shapes, colors, and electrical configurations. Contact APEM's technical support or sales team for more information.
