5247CDB - Apem

Description: DP Toggle Switch (On)-Off-(On), 0.4 A@ 20 V, PCB

Download 5247CDB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5247CDB - Apem - PCB symbol
click to zoom
PCB Footprints

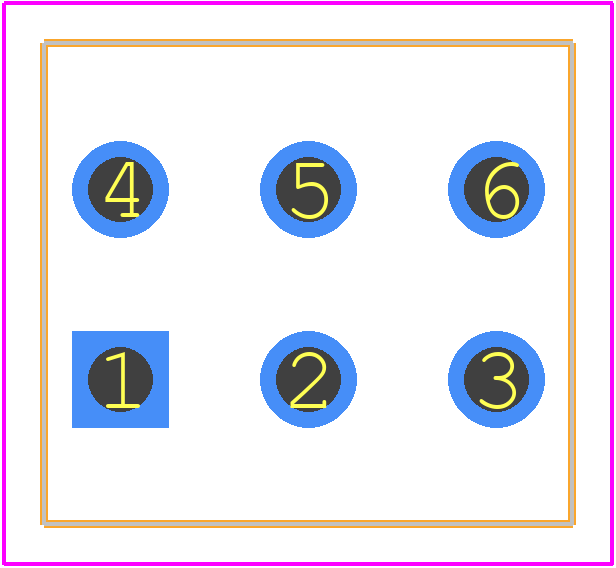

5247CDB - Apem PCB footprint - Other - Other - 5247CDB-3
click to zoom
3D Models
5247CDB - Apem - 3D model - Other - 5247CDB-3
click to zoom

5247CDB Details

  • Manufacturer Part Number:

    5247CDB

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    UK

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.40

  • Manufacturer:

    APEM Inc

  • YTEOL:

    8

  • Actuator Type:

    STANDARD TYPE

  • Additional Feature:

    PANEL MOUNT-THREADED ALSO AVAILABLE

  • Body Breadth:

    12 mm

  • Body Height:

    13.3 mm

  • Body Length or Diameter:

    13.2 mm

  • Contact (AC) Max Rating R Load:

    .02A@20VAC

  • Contact Current(AC)-Max:

    0.02 A

  • Contact Current(DC)-Max:

    0.02 A

  • Contact (DC) Max Rating R Load:

    .02A@20VDC

  • Contact Voltage(AC)-Max:

    20 V

  • Contact Voltage(DC)-Max:

    20 V

  • Electrical Life:

    100000 Cycle(s)

  • JESD-609 Code:

    e4

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Sealing:

    EPOXY TERMINAL SEALED

  • Surface Mount:

    NO

  • Switch Action:

    MOMENTARY

  • Switch Function:

    DPDT

  • Switch Type:

    TOGGLE SWITCH

  • Terminal Finish:

    Gold (Au)

  • Termination Type:

    SOLDER

5247CDB Frequently Asked Questions (FAQs)

  • APEM recommends a torque of 0.5 Nm to 1.5 Nm for the 5247CDB switch's actuator to ensure proper operation and prevent damage.
  • Yes, the 5247CDB is designed to withstand high-vibration environments and meets the IEC 61373 Cat 1, Class B standard for vibration resistance.
  • The 5247CDB has a sealed construction and is resistant to many harsh chemicals, but it's recommended to consult APEM's chemical resistance chart or contact their technical support for specific compatibility information.
  • APEM recommends cleaning the 5247CDB with a soft, dry brush or a lint-free cloth and mild soap solution. Avoid using harsh chemicals, abrasive materials, or high-pressure washes that may damage the switch.
  • Yes, APEM offers customization options for the 5247CDB, including custom actuator lengths, special terminations, and more. Contact APEM's technical support or sales team to discuss specific requirements.
