5249AB - Apem

Description: Toggle Switches Pln bushing togle DP ON OFF ON

Download 5249AB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5249AB - Apem - PCB symbol
click to zoom
PCB Footprints

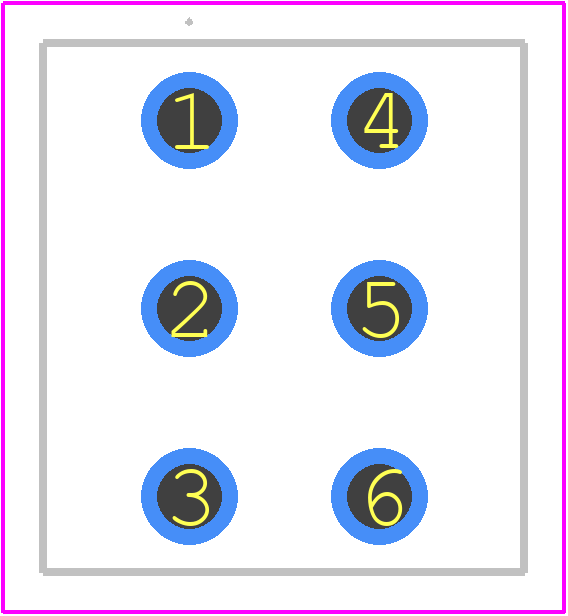

5249AB - Apem PCB footprint - Other - Other - 5249AB-2
click to zoom
3D Models
5249AB - Apem - 3D model - Other - 5249AB-2
click to zoom

5249AB Details

  • Manufacturer Part Number:

    5249AB

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    UK

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.65

  • Manufacturer:

    APEM Inc

  • YTEOL:

    9

  • Actuator Type:

    STANDARD TYPE

  • Additional Feature:

    PANEL MOUNT-THREADED ALSO AVAILABLE

  • Body Breadth:

    12 mm

  • Body Height:

    13.3 mm

  • Body Length or Diameter:

    13.2 mm

  • Contact (AC) Max Rating R Load:

    6A@125VAC

  • Contact Current(AC)-Max:

    6 A

  • Contact Current(DC)-Max:

    4 A

  • Contact (DC) Max Rating R Load:

    4A@30VDC

  • Contact Voltage(AC)-Max:

    125 V

  • Contact Voltage(DC)-Max:

    30 V

  • Electrical Life:

    50000 Cycle(s)

  • JESD-609 Code:

    e4

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Sealing:

    EPOXY TERMINAL SEALED

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    DPDT

  • Switch Type:

    TOGGLE SWITCH

  • Terminal Finish:

    Silver (Ag)

  • Termination Type:

    SOLDER

5249AB Frequently Asked Questions (FAQs)

  • APEM recommends a torque of 0.5 Nm to 1.5 Nm for the nut and washer to ensure proper installation and prevent damage.
  • Yes, the 5249AB switch is designed to withstand high-vibration environments and meets the IEC 60068-2-6 standard for vibration resistance.
  • No, the 5249AB switch is not designed for use in explosive atmospheres or hazardous locations. It does not meet the requirements for ATEX or UL certification.
  • APEM recommends cleaning the switch with a soft, dry brush or a lint-free cloth to remove dirt and debris. Avoid using chemicals, solvents, or liquids, as they may damage the switch's components.
  • The 5249AB switch has an IP67 rating, which means it is protected against dust and temporary immersion in water up to 1 meter for 30 minutes. However, it is not designed for continuous use in wet environments.
