524MILFT - Renesas Electronics

Description: The 524 is a low skew, single input to four output, clock buffer. Part of Renesas' ClockBlocks™ family, this is our lowest skew, small clock buffer. See the 552-02 for a 1 to 8 low skew buffer. For more than eight outputs, see the MK74CBxxx Buffalo™ series of clock drivers. Renesas makes many non-PLL and PLL based low skew output devices as well as Zero Delay Buffers to synchronize clocks. Contact us for all of your clocking needs.

Download 524MILFT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

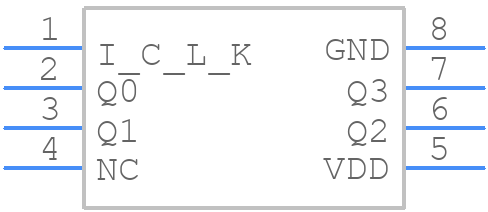

524MILFT - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
524MILFT - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - DCG8
click to zoom
3D Models
524MILFT - Renesas Electronics - 3D model - Small Outline Packages - DCG8
click to zoom

524MILFT Details

  • Manufacturer Part Number:

    524MILFT

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    DCG8

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    3

  • Family:

    524

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Max I(ol):

    0.035 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of True Outputs:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    5 ns

  • Propagation Delay (tpd):

    5 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.5 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

524MILFT Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 524MILFT is -40°C to 125°C.
  • The 524MILFT has a built-in POR and BOR circuitry. The POR is triggered when the power supply voltage (VCC) rises above 1.9V, and the BOR is triggered when VCC falls below 1.7V. You can use external resistors and capacitors to adjust the POR and BOR thresholds if needed.
  • The 524MILFT supports a maximum clock frequency of 32 MHz.
  • The 524MILFT's UART interface can be configured using the UART control registers. You can set the baud rate, data bits, stop bits, and parity using the UART control registers. Refer to the datasheet for the register addresses and bit definitions.
  • Yes, the 524MILFT has a low-power mode called 'Sleep Mode' that can be enabled by setting the Sleep Mode bit in the Power Management Control Register. In Sleep Mode, the CPU clock is stopped, and the power consumption is reduced.
