- Part Number 52559-1292
- Manufacturer Molex
- Pin Count 16
- Part Category Connector
- Package Category Other
- Footprint Name Other - 52559-1292-1
- Released Date Sep 29, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
52559-1292 Details
-
Manufacturer Part Number:
52559-1292
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
Manufacturer:
Molex
-
YTEOL:
0
-
Additional Feature:
ZIF, STAGGERED CONFIGURATION
-
Board Mounting Option:
FITTING NAIL
-
Body Breadth:
0.118 inch
-
Body Depth:
0.154 inch
52559-1292 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
-
Yes, the 52559-1292 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
-
The 52559-1292 connector is designed for indoor use, but it can be used in outdoor or harsh environmental conditions with proper sealing and protection. Molex recommends using additional sealing or conformal coating to ensure the connector's reliability in such conditions.
-
The 52559-1292 connector is designed to accommodate wire sizes up to 20 AWG (0.5 mm²). Using larger wire sizes may compromise the connector's reliability and performance.
-
The 52559-1292 connector is designed to mate with other Molex connectors of the same series. While it may be possible to use it with connectors from other manufacturers, compatibility and reliability cannot be guaranteed. It's recommended to use Molex connectors for optimal performance and reliability.
Trust Checks
Community Provided
System Verified
Community Approved
52559-1292 Overview

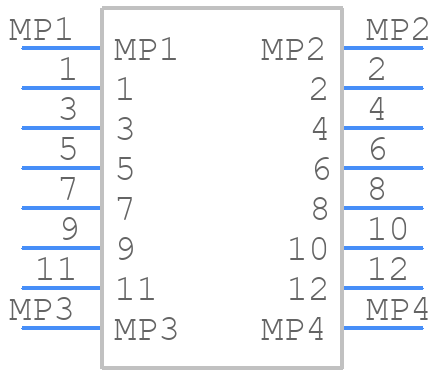

Use the download button to access the 52559-1292 schematic symbol, PCB footprint, and 3D model.
