The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the 52559-3233 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) according to IEC 60068-2-6. However, it's crucial to ensure proper mounting and secure the connector to the PCB or chassis to prevent damage.
The 52559-3233 connector has a rating of IP67, which means it can withstand temporary immersion in water (up to 1m for 30 minutes) and is protected against dust ingress. However, it's essential to follow proper sealing and potting procedures to maintain the IP67 rating.
The 52559-3233 connector has an operating temperature range of -40°C to 105°C (-40°F to 221°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
While the datasheet specifies AWG 20-24 wire sizes, it's possible to use other wire sizes with the 52559-3233 connector. However, it's crucial to ensure that the wire size and insulation meet the connector's specifications and that the wire is properly terminated to prevent damage or electrical issues.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
52559-3233 Overview

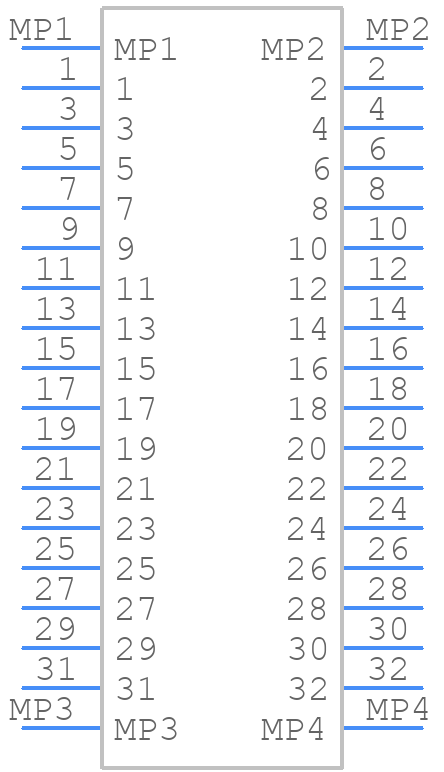

Use the download button to access the 52559-3233 schematic symbol, PCB footprint, and 3D model.
