52610-3090 - Molex

Description: Flex Cable Connector, Pcb Mnt, 30 Contacts, 1, Fcc Retnn Dvc

Download 52610-3090 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

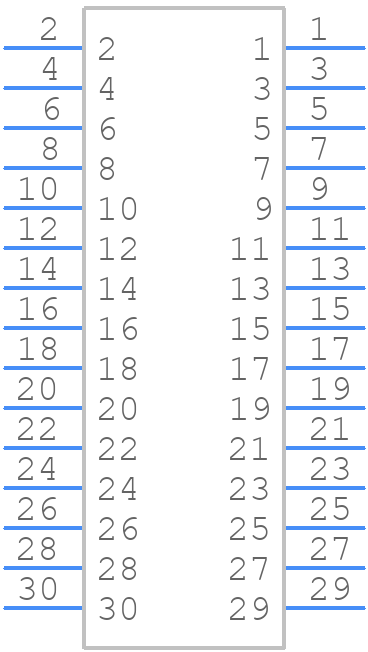

52610-3090 - Molex - PCB symbol
click to zoom
PCB Footprints
52610-3090 - Molex PCB footprint - Other - Other - 52610-3090-2
click to zoom
3D Models
52610-3090 - Molex - 3D model - Other - 52610-3090-2
click to zoom

52610-3090 Details

  • Manufacturer Part Number:

    52610-3090

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Body Breadth:

    0.142 inch

  • Body Depth:

    0.226 inch

  • Body Length:

    1.441 inch

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    BELLOWED TYPE

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    500VAC V

  • Durability:

    30 Cycles

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insertion Force-Max:

    ZIF N

  • Insulation Resistance:

    100000000 Ω

  • Insulator Color:

    WHITE

  • Insulator Material:

    GLASS FILLED POLYAMIDE46

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.039 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    3.8 mm

  • Plating Thickness:

    3.94u inch

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    1 A

  • Reference Standard:

    CSA; UL

  • Terminal Pitch:

    1 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    30

  • UL Flammability Code:

    94V-0

52610-3090 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 52610-3090 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 52610-3090 connector has a IP67 rating, which means it's protected against dust and water ingress. However, it's not designed for extreme outdoor or harsh environment applications. If you need a connector for such applications, consider using a connector with a higher IP rating or additional protection measures.
  • While the datasheet specifies AWG 20-24 wire sizes, it's possible to use this connector with other wire sizes. However, you'll need to ensure the wire size is compatible with the connector's terminal design and that the wire can be securely fastened to prevent damage or disconnection.
  • Yes, it's essential to follow proper PCB layout guidelines to ensure reliable connections and prevent damage to the connector. Keep the PCB traces away from the connector's mounting holes, and ensure the PCB material can withstand the connector's operating temperature range.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

52610-3090 Overview

Use the download button to access the 52610-3090 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 52610, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
