52745-1433 - Molex

Description: FFC & FPC Connectors EasyOn .5mm FPC RA ZIF TopContact 14Ckt

Download 52745-1433 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

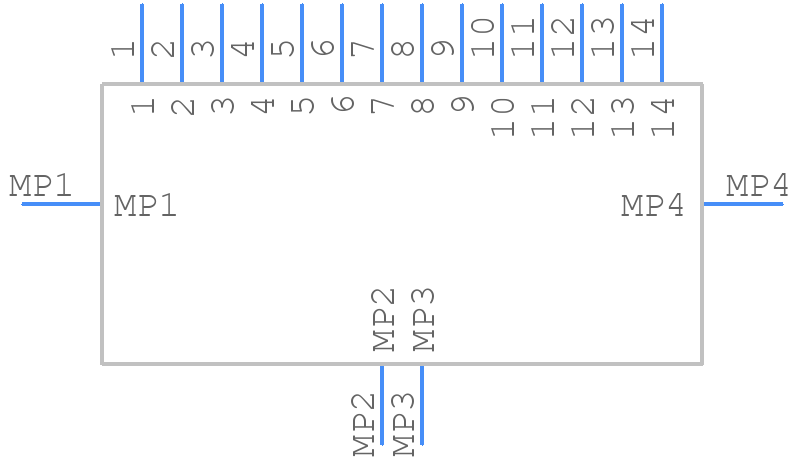

52745-1433 - Molex - PCB symbol
click to zoom
PCB Footprints
52745-1433 - Molex PCB footprint - Other - Other - 52745-1433-2
click to zoom
3D Models
52745-1433 - Molex - 3D model - Other - 52745-1433-2
click to zoom

52745-1433 Details

  • Manufacturer Part Number:

    52745-1433

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Japan, Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Board Mounting Option:

    FITTING NAIL

  • Body Breadth:

    0.079 inch

  • Body Depth:

    0.252 inch

  • Body Length:

    0.516 inch

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin/Silver/Bismuth (Sn/Ag/Bi)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    BELLOWED TYPE

  • Filter Feature:

    NO

  • Insulation Resistance:

    50000000 Ω

  • Insulator Color:

    WHITE

  • Insulator Material:

    GLASS FILLED POLYAMIDE

  • Mating Contact Pitch:

    0.02 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    0.5 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.5 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    14

52745-1433 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 52745-1433 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • Yes, the 52745-1433 connector is designed for automated assembly and can be easily integrated into pick-and-place machines and other automated assembly systems.
  • The operating temperature range for the 52745-1433 connector is -40°C to 105°C (-40°F to 221°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.
  • The 52745-1433 connector is designed to be resistant to harsh environments, including high humidity and exposure to certain chemicals. However, it's essential to follow proper sealing and protection procedures to ensure the connector remains reliable in these environments.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

52745-1433 Overview

Use the download button to access the 52745-1433 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 52745, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
