52745-2096 - Molex

Description: Conn FFC/FPC Connector SKT 20 POS 0.5mm Solder RA SMD Easy-On™ T/R

Download 52745-2096 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

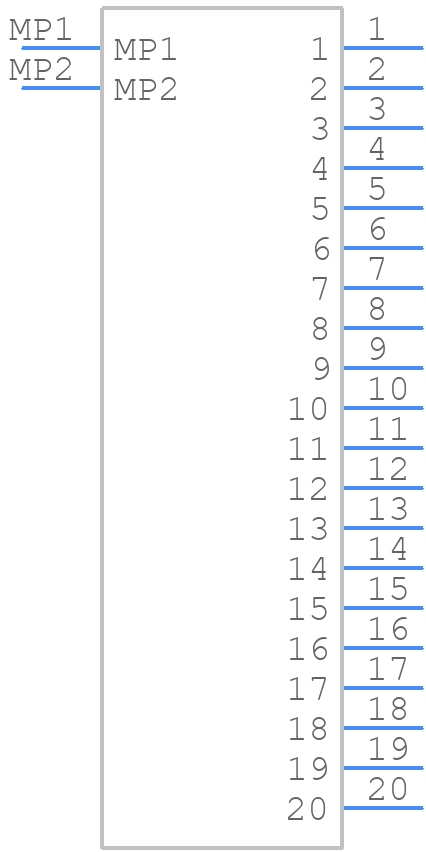

52745-2096 - Molex - PCB symbol
click to zoom
PCB Footprints
52745-2096 - Molex PCB footprint - Other - Other - 52745-2096-3
click to zoom
3D Models
52745-2096 - Molex - 3D model - Other - 52745-2096-3
click to zoom

52745-2096 Details

  • Manufacturer Part Number:

    52745-2096

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Hong Kong SAR, Mexico, Vietnam

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    19 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    7

  • Board Mounting Option:

    FITTING NAIL

  • Body Breadth:

    0.079 inch

  • Body Depth:

    0.252 inch

  • Body Length:

    0.634 inch

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin/Bismuth (Sn/Bi)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    BELLOWED TYPE

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    350VAC V

  • Durability:

    20 Cycles

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insertion Force-Max:

    ZIF N

  • Insulation Resistance:

    50000000 Ω

  • Insulator Color:

    WHITE

  • Insulator Material:

    GLASS FILLED POLYAMIDE

  • JESD-609 Code:

    e6

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.02 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    0.5 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.5 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    20

  • UL Flammability Code:

    94V-0

  • Withdrawl Force-Min:

    ZIF N

52745-2096 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 52745-2096 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 52745-2096 connector has a IP67 rating, which means it's protected against dust and water ingress. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating. Additionally, the connector's materials and plating may not be suitable for extreme environmental conditions, such as high temperatures, salt spray, or UV exposure.
  • While the datasheet recommends AWG 20-24 wire sizes, it's possible to use other wire sizes with the 52745-2096 connector. However, it's essential to ensure the wire size is compatible with the connector's terminal design and that the wire can withstand the connector's current rating. Consult with Molex or a qualified engineer for guidance on using non-recommended wire sizes.
  • To ensure reliable connections and prevent contact damage, follow proper termination and installation procedures. Ensure the wire is stripped to the correct length, and the terminal screws are tightened to the recommended torque. Avoid over-tightening, which can damage the contacts or wire. Regularly inspect the connections for signs of wear or damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

52745-2096 Overview

Use the download button to access the 52745-2096 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 52745, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
