52806-2610 - Molex

52806-2610 Details

• Manufacturer Part Number:

  52806-2610

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

• Reach Compliance Code:

  Compliant

• Country Of Origin:

  Hong Kong SAR, Japan, Mainland China, Malaysia

• ECCN Code:

  EAR99

• Factory Lead Time:

  20 Weeks

• Manufacturer:

  Molex

• YTEOL:

  3

• Additional Feature:

  STAGGERED CONFIGURATION

• Body Breadth:

  0.118 inch

• Body Depth:

  0.213 inch

• Body Length:

  0.984 inch

• Connector Type:

  FFC/FPC CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  Tin (Sn)

• Contact Gender:

  FEMALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  30 mΩ

• Contact Style:

  SINGLE PRONG

• DIN Conformance:

  NO

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulation Resistance:

  100000000 Ω

• Insulator Material:

  POLYPHENYLENE SULFIDE

• JESD-609 Code:

  e3

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.039 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  1

• Operating Temperature-Max:

  80 °C

• Operating Temperature-Min:

  -20 °C

• Option:

  GENERAL PURPOSE

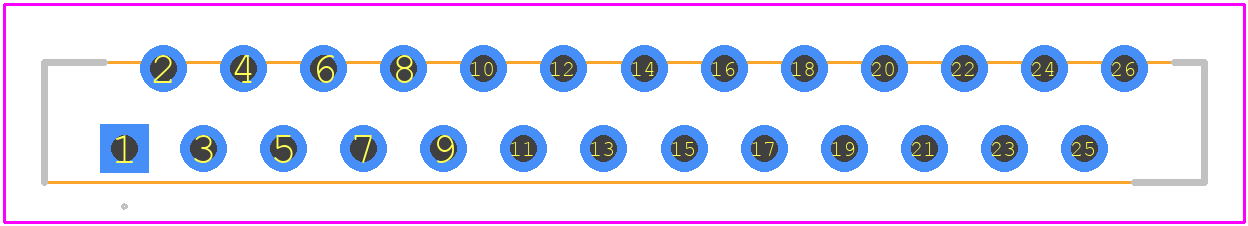

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  2.0066 mm

• Rated Current (Signal):

  0.5 A

• Terminal Pitch:

  2 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  26

• UL Flammability Code:

  94V-0
