531-40047-4 footprint, schematic symbol and 3D model by Amphenol

Symbol

click to zoom

PCB Footprints

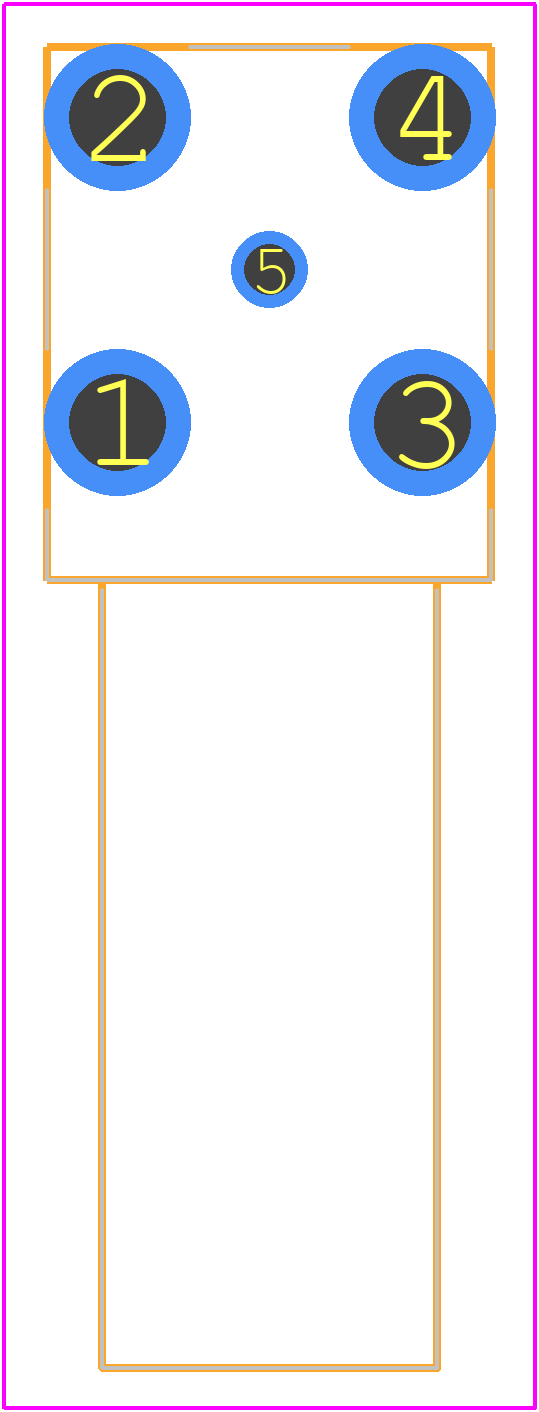

531-40047-4 - Amphenol PCB footprint - Other - Other - 531-40047-4-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 531-40047-4
Part Number 531-40047-4
Manufacturer Amphenol
Pin Count 5
Part Category Connector
Package Category Other
Footprint Name Other - 531-40047-4-1
Released Date Apr 27, 2019
Last Modified Date Nov 21, 2025 11:38 AM UTC
Pinout / Pin List Click Here (Member Only)

531-40047-4 Details

Manufacturer Part Number:
531-40047-4
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.10
Factory Lead Time:
10 Weeks
Manufacturer:
Amphenol Corporation
Body Breadth:
0.48 inch
Body Depth:
1.3 inch
Body/Shell Style:
RECEPTACLE
Characteristic Impedance:
75 Ω
Connector Type:
RF F CONNECTOR
Contact Finish Mating:
TIN
Contact Finish Termination:
Tin (Sn)
Contact Gender:
FEMALE
Contact Material:
BERYLLIUM COPPER
Coupling Type:
THREADED
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
POLYMETHYLPENTENE
JESD-609 Code:
e3
MIL Conformance:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Operating Frequency-Max:
3 GHz
Operating Temperature-Max:
165 °C
Operating Temperature-Min:
-65 °C
Option:
GENERAL PURPOSE
Panel Mount:
NO
Shell Finish:
TIN
Shell Material:
ZINC
Termination Type:
SOLDER
Total Number of Contacts:
1
VSWR:
1.92

531-40047-4 Frequently Asked Questions (FAQs)

The recommended torque value for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs). However, it's always best to consult the specific application requirements and the manufacturer's recommendations.
Yes, the 531-40047-4 connector is designed to withstand high-vibration environments. It has a ruggedized design and meets the requirements of various industry standards for vibration resistance.
Yes, the 531-40047-4 connector is designed to operate in harsh environmental conditions, including extreme temperatures, humidity, and exposure to chemicals. However, it's essential to consult the datasheet and manufacturer's recommendations for specific environmental requirements.
The mating cycle life of the 531-40047-4 connector is typically rated for 500-1000 mating cycles, depending on the specific application and environmental conditions. However, it's recommended to consult the manufacturer's specifications and testing data for more accurate information.
Yes, the 531-40047-4 connector is designed to be compatible with other Amphenol connectors that share the same interface and mating configuration. However, it's essential to consult the datasheet and manufacturer's recommendations to ensure compatibility and proper mating.

Trust Checks

Expert Contribution

System Verified

Community Approved

531-40047-4 Overview

Use the download button to access the 531-40047-4 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 531-4, or try a keyword search, such as Other RF Connectors
