531-40165 footprint, schematic symbol and 3D model by Amphenol

Symbol

click to zoom

PCB Footprints

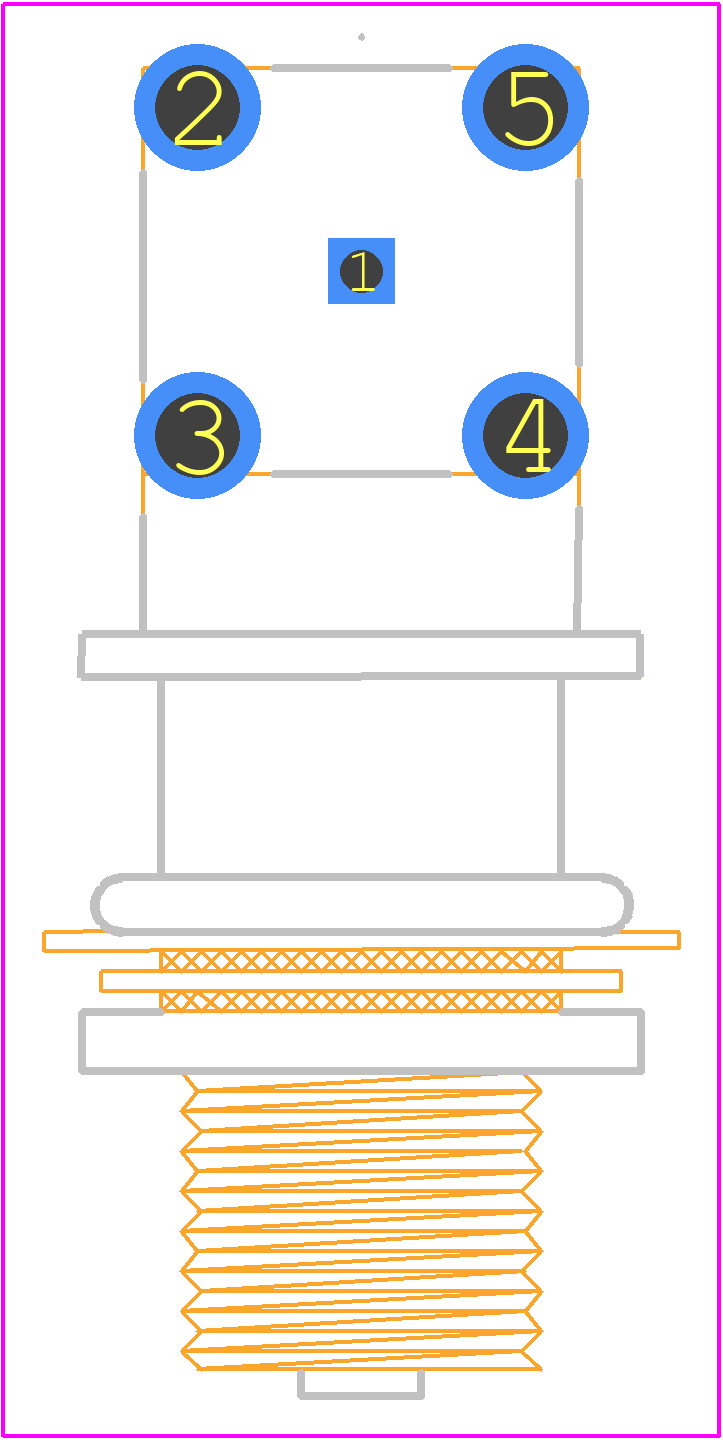

531-40165 - Amphenol PCB footprint - Other - Other - 531-40165-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 531-40165
Part Number 531-40165
Manufacturer Amphenol
Pin Count 5
Part Category Connector
Package Category Other
Footprint Name Other - 531-40165-3
Released Date Sep 7, 2023
Last Modified Date Sep 8, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

531-40165 Details

Manufacturer Part Number:
531-40165
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.10
Factory Lead Time:
10 Weeks
Manufacturer:
Amphenol Corporation
Body Breadth:
0.43 inch
Body Depth:
0.263 inch
Body Length:
0.47 inch
Body/Shell Style:
JACK
Characteristic Impedance:
75 Ω
Connector Type:
RF F CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
NOT APPLICABLE
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
Contact Style:
COAX
Coupling Type:
THREADED
Durability:
500 Cycles
Insertion Loss:
0.46 dB
Insulator Material:
POLYTETRAFLUOROETHYLENE
Mounting Option 1:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD AND PANEL
Number of Ports:
1
Operating Frequency-Max:
2.15 GHz
Operating Temperature-Max:
165 °C
Operating Temperature-Min:
-65 °C
Option:
GENERAL PURPOSE
Panel Mount:
YES
Rated Current (Signal):
3 A
Shell Finish:
TIN
Shell Material:
ZINC ALLOY
Termination Type:
SOLDER
Total Number of Contacts:
1
VSWR:
1.93

531-40165 Frequently Asked Questions (FAQs)

The recommended torque value for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs). However, it's always best to consult the specific application requirements and the datasheet for the most up-to-date information.
Yes, the 531-40165 connector is designed to withstand high-vibration environments. It meets the requirements of MIL-DTL-5015, which includes vibration testing. However, it's essential to ensure that the connector is properly installed and secured to maintain its performance.
The 531-40165 connector is designed to operate in a wide range of temperatures (-55°C to 150°C) and can withstand exposure to various chemicals. However, it's crucial to consult the datasheet and Amphenol's application notes for specific guidance on environmental considerations.
The 531-40165 connector is designed to work with specific wire gauges and types. While it may be possible to use it with other wire gauges or types, it's essential to consult the datasheet and Amphenol's application notes to ensure compatibility and avoid any potential performance issues.
The 531-40165 connector has a mating cycle life of at least 500 cycles. However, this may vary depending on the specific application, environment, and usage. It's recommended to consult the datasheet and Amphenol's application notes for more information.

Trust Checks

Community Provided

System Verified

Community Approved

531-40165 Overview

Use the download button to access the 531-40165 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 531-4, or try a keyword search, such as Other RF Connectors
