- Part Number 531145-1
- Manufacturer TE Connectivity
- Pin Count 122
- Part Category Connector
- Package Category Other

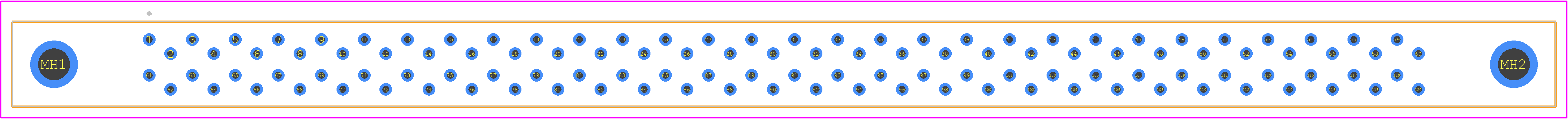

- Footprint Name Other - 531145-1-2
- Released Date Jan 28, 2021
- Last Modified Date Jun 22, 2023 10:55 AM UTC
- Pinout / Pin List Click Here (Member Only)
531145-1 Details
-
Manufacturer Part Number:
531145-1
-
Brand Name:
AMP
-
Pbfree Code:
No
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
TE Connectivity
-
YTEOL:
9
-
Additional Feature:
STANDARD: MIL-C-M55302, STAGGERED CONFIGURATION
-
Body Breadth:
0.3 inch
-
Body Depth:
0.4 inch
531145-1 Frequently Asked Questions (FAQs)
-
The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
-
Yes, the 531145-1 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
-
The operating temperature range for the 531145-1 connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
-
The 531145-1 connector has a IP67 rating, which means it is protected against dust and temporary immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's not recommended for use in applications with exposure to harsh chemicals or prolonged immersion in water.
-
While the 531145-1 connector is designed for use with AWG 20-24 wires, it's possible to use it with other wire sizes. However, it's essential to ensure that the wire size is compatible with the connector's terminal design and that the wire is properly secured to prevent damage or disconnection.
