531722-5 - TE Connectivity

Description: Headers & Wire Housings 2R BOX PIN 70P R/A

Download 531722-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
531722-5 - TE Connectivity - PCB symbol
click to zoom

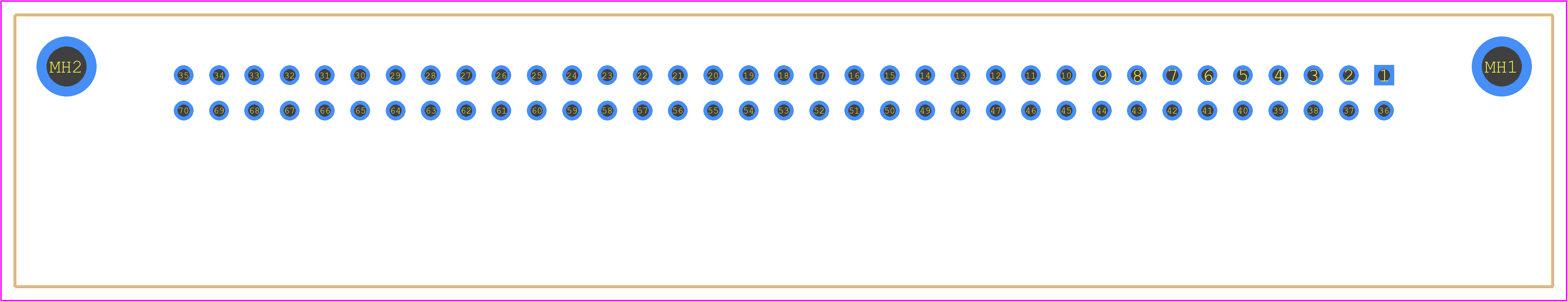

PCB Footprints
531722-5 - TE Connectivity PCB footprint - Other - Other - 531722-5-1
click to zoom
3D Models
531722-5 - TE Connectivity - 3D model - Other - 531722-5-1
click to zoom

531722-5 Details

  • Manufacturer Part Number:

    531722-5

  • Brand Name:

    AMP

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9.1

  • Additional Feature:

    STANDARD: MIL-C-55302

  • Board Mounting Option:

    HOLE .099-.111

  • Body Breadth:

    0.33 inch

  • Body Depth:

    0.77 inch

  • Body Length:

    4.355 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e0

  • MIL Conformance:

    YES

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.54 mm

  • Plating Thickness:

    30u inch

  • Polarization Key:

    SHRD ENDS

  • Terminal Length:

    0.125 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    70

531722-5 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 531722-5 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • While the datasheet specifies 20 AWG wire, the connector can accommodate wire sizes between 18 AWG and 22 AWG. However, it's crucial to verify the wire size and insulation diameter to ensure proper fit and connection reliability.
  • The 531722-5 connector is designed for use in industrial environments and can operate in temperatures ranging from -40°C to 125°C. However, it's essential to consider the specific environmental conditions and potential effects on the connector's performance and reliability.
  • Yes, it's essential to follow the recommended PCB layout guidelines to ensure proper connector mating and prevent damage. The datasheet provides guidelines for PCB hole size, spacing, and layout to ensure reliable connections.
