53258-0929 footprint, schematic symbol and 3D model by Molex

Symbol

click to zoom

PCB Footprints

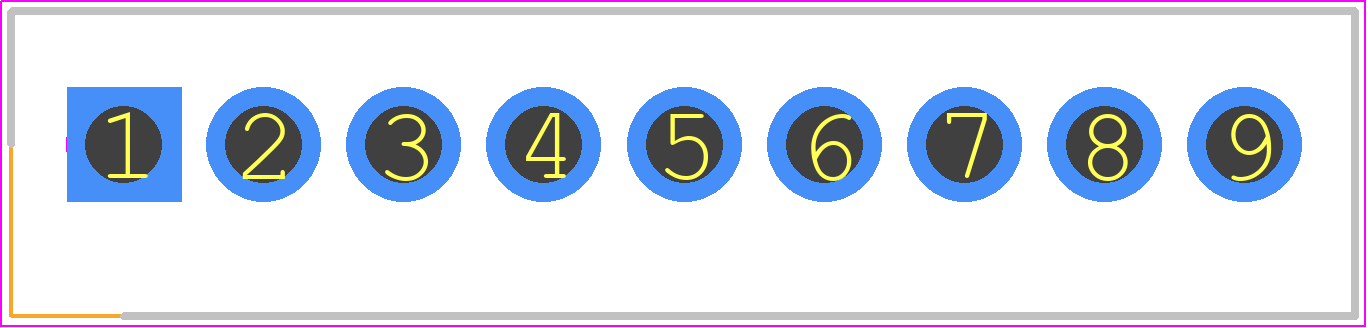

53258-0929 - Molex PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - 53258-0929

click to zoom

3D Models

53258-0929 - Molex - 3D model - Header, Shrouded - Straight PTH Box - 53258-0929

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 53258-0929
Part Number 53258-0929
Manufacturer Molex
Pin Count 9
Part Category Connector
Package Category Header, Shrouded - Straight PTH Box
Footprint Name Header, Shrouded - Straight PTH Box - 53258-0929
Released Date Jan 2, 2021
Pinout / Pin List Click Here (Member Only)

Trust Checks

Community Provided

System Verified

Community Approved

53258-0929 Overview

Use the download button to access the 53258-0929 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 53258, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
