53258-1529 - Molex

Description: Molex 53258, 3.5mm Pitch, 15 Way, 1 Row, Straight PCB Header, Through Hole

Download 53258-1529 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
53258-1529 - Molex - PCB symbol
click to zoom

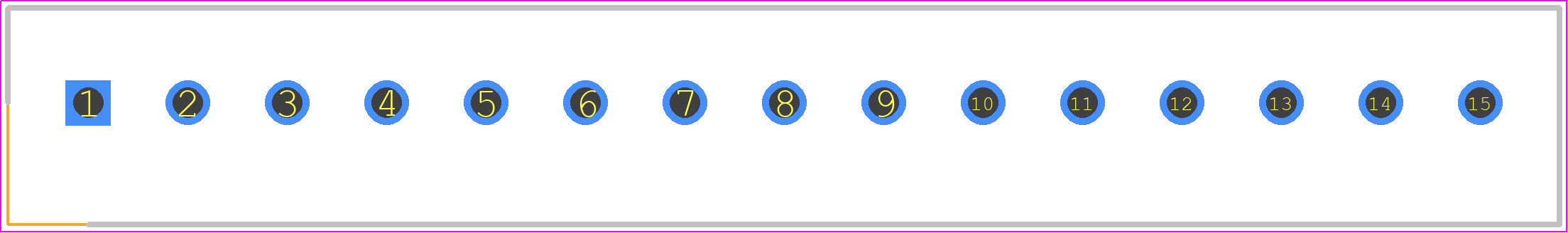

PCB Footprints
53258-1529 - Molex PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - 532581529
click to zoom
3D Models
53258-1529 - Molex - 3D model - Header, Shrouded - Straight PTH Box - 532581529
click to zoom

53258-1529 Details

  • Manufacturer Part Number:

    53258-1529

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan, South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT(POWER):5.5A

  • Body Breadth:

    0.299 inch

  • Body Depth:

    0.413 inch

  • Body Length:

    2.15 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    PBT-POLYESTER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    15

  • UL Flammability Code:

    94V-0

53258-1529 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 53258-1529 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's recommended to follow Molex's guidelines for vibration testing and to ensure proper mounting and securing of the connector.
  • The 53258-1529 connector has a IP20 rating, which means it provides some protection against solid objects and limited protection against water. While it can be used in outdoor or harsh environment applications, it's essential to ensure proper sealing and protection to maintain its performance and reliability.
  • While the datasheet recommends using AWG 20-24 wire sizes, it's possible to use other wire sizes with the 53258-1529 connector. However, it's crucial to ensure that the wire size and insulation meet the connector's specifications and that the connection is reliable and secure.
  • To ensure proper mating and unmating of the 53258-1529 connector, follow Molex's guidelines for connector handling and mating. Ensure the connector is properly aligned, and the mating force is within the specified range. Avoid using excessive force, which can damage the connector or its components.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

53258-1529 Overview

Use the download button to access the 53258-1529 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 53258, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
