534688-4 - TE Connectivity

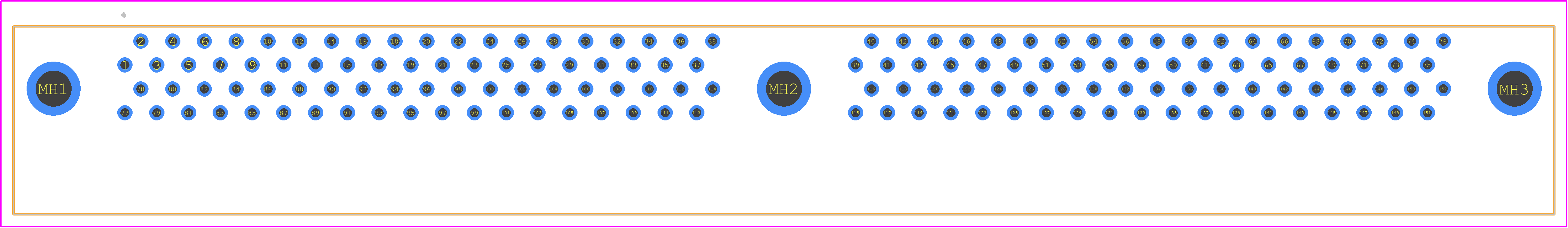

534688-4 Details

• Manufacturer Part Number:

  534688-4

• Brand Name:

  AMP

• Pbfree Code:

  No

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Factory Lead Time:

  20 Weeks, 2 Days

• Manufacturer:

  TE Connectivity

• YTEOL:

  9.15

• Additional Feature:

  POLARIZATION AVAILABLE

• Board Mounting Option:

  HOLE .086-.098

• Body Breadth:

  0.34 inch

• Body Depth:

  0.545 inch

• Body Length:

  4.85 inch

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  NOT APPLICABLE

• Contact Finish Termination:

  Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier

• Contact Gender:

  MALE

• Contact Material:

  NOT APPLICABLE

• Contact Pattern:

  RECTANGULAR

• Contact Style:

  SQ PIN-SKT

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  600VAC V

• EMI Shielded:

  NO

• Empty Shell:

  YES

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulator Color:

  GRAY

• Insulator Material:

  LIQUID CRYSTAL POLYMER

• JESD-609 Code:

  e0

• MIL Conformance:

  NO

• Mains Connector Rating:

  1.5A

• Mating Contact Pitch:

  0.05 inch

• Mating Contact Row Spacing:

  0.15 inch

• Mating Information:

  534179-3

• Mixed Contacts:

  NO

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  4

• Number of Ports:

  1

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -65 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  1.905 mm

• Panel Mount:

  NO

• Plating Thickness:

  50u inch

• Polarization Key:

  POLARIZED

• Rated Current (Signal):

  1.5 A

• Reference Standard:

  UL

• Terminal Length:

  0.185 inch

• Terminal Pitch:

  1.27 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  152

• UL Flammability Code:

  94V-0
