- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 5352639-1
- Part Number 5352639-1
- Manufacturer TE Connectivity
- Pin Count 110
- Part Category Connector
- Package Category Other

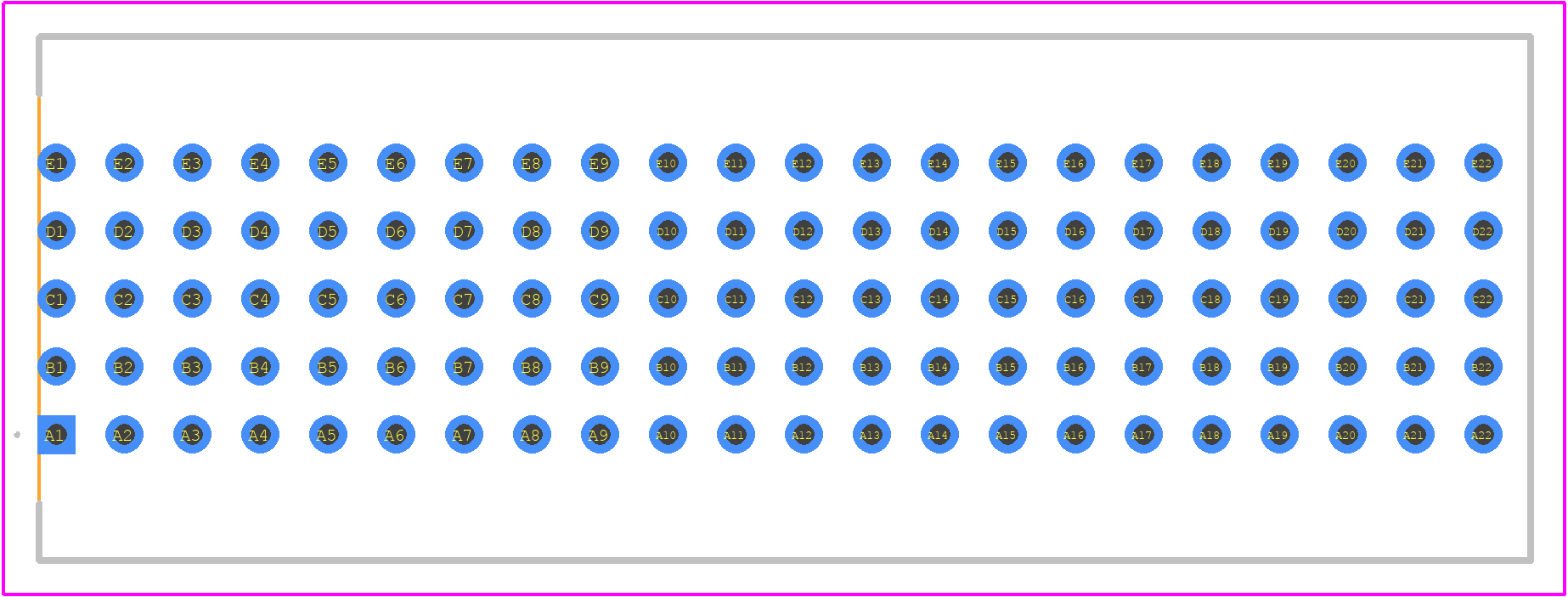

- Footprint Name Other - 5352639-1-2
- Released Date Dec 31, 2022
- Last Modified Date Dec 15, 2024 11:07 PM UTC
- Pinout / Pin List Click Here (Member Only)
5352639-1 Details
-
Manufacturer Part Number:
5352639-1
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Factory Lead Time:
6 Weeks, 1 Day
-
Manufacturer:
TE Connectivity
-
YTEOL:
8
-
Connector Type:
BOARD CONNECTOR
-
Contact Finish Mating:
NOT APPLICABLE
-
Contact Material:
NOT APPLICABLE
5352639-1 Frequently Asked Questions (FAQs)
-
The recommended torque value for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this range to ensure reliable connections and prevent damage to the connector.
-
Yes, the 5352639-1 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
-
The 5352639-1 connector has a IP67 rating, which means it's protected against dust and water ingress. However, it's not designed for prolonged exposure to direct sunlight, high temperatures, or extreme humidity. For outdoor or harsh environment applications, consider using a connector with a higher IP rating or additional protection measures.
-
The 5352639-1 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). Exceeding this range may affect the connector's performance and reliability.
-
While the datasheet recommends using AWG 20-24 wires, it's possible to use other wire sizes with this connector. However, you should ensure the wire size is compatible with the connector's terminal design and that the wire insulation is not damaged during installation.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
5352639-1 Overview
Use the download button to access the 5352639-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 53526,
or try a keyword search, such as Headers and Edge Type Connectors
