535L250X2GT5 - CTS

Description: CTS Model 535 is a high performance Temperature Compensated Crystal Oscillator [TCXO] suitable for applications requiring tight stability, Stratum 3 performance and more. Employing IC technology with Clipped Sine output and analog temperature compensation engine; coupled with a fundamental quartz crystal M535 has excellent stability and low jitter/phase noise performance.

Download 535L250X2GT5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

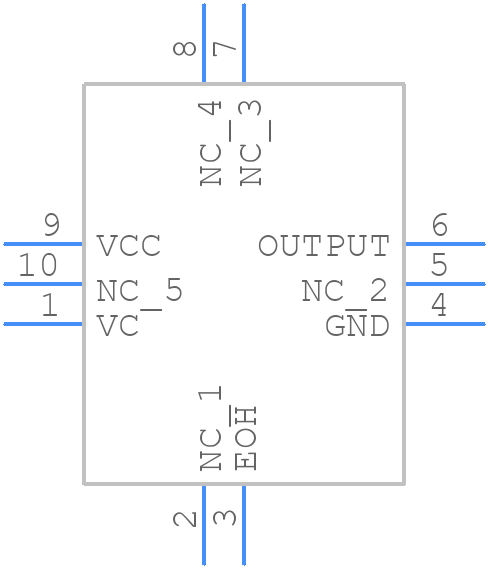

535L250X2GT5 - CTS - PCB symbol
click to zoom
PCB Footprints
535L250X2GT5 - CTS PCB footprint - Other - Other - 10-SMD
click to zoom
3D Models
535L250X2GT5 - CTS - 3D model - Other - 10-SMD
click to zoom

535L250X2GT5 Details

  • Manufacturer Part Number:

    535L250X2GT5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    CTS Corporation

  • YTEOL:

    9

  • Additional Feature:

    TR, 7 INCH

  • Aging:

    1 PPM/FIRST YEAR

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    0.28%

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    10

  • Operating Frequency-Nom:

    25 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    CLIPPED SINE

  • Output Impedance:

    10000 Ω

  • Output Level:

    0.8 V

  • Physical Dimension:

    5.0mm x 3.2mm x 2.0mm

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    GOLD FLASH OVER NICKEL

535L250X2GT5 Frequently Asked Questions (FAQs)

  • The recommended PCB layout and land pattern can be found in the CTS Corporation's application note AN-103, which provides guidelines for optimal performance and reliability.
  • While the datasheet provides frequency stability information over a specific temperature range, engineers may want to know the exact frequency deviation at specific temperatures. CTS Corporation can provide this information upon request or through their technical support team.
  • The datasheet may not explicitly state the maximum allowable voltage for the input pins. According to CTS Corporation, the maximum allowable voltage is 1.5V above the recommended operating voltage, but it's recommended to consult with their technical support team for specific guidance.
  • While the datasheet may not provide information on radiation hardness or high-reliability applications, CTS Corporation can provide additional information and support for these types of applications upon request.
  • The power-up time is typically around 10ms, but this can vary depending on the specific application and operating conditions. Engineers should consult with CTS Corporation's technical support team for more information.
