536019-5 - TE Connectivity

Description: Body Features: Primary Product Color Gray | Configuration Features: Number of Signal Positions 96 | Number of Positions 96 | Mating & Unmating Configuration Make First / Break Last | Rows Loaded C | Number of Rows 3 | Number of Columns 32 | PCB Mount Orientation Vertical | Rows Loaded B | Rows Loaded A | Contact Features: Contact Mating Area Plating Material Thickness 2.99212 – 4.99999 MICIN | PCB Contact Termination Area Plating Material Thickness 99.9998 – 199.9996 MICIN | Contact Base Material Phosph

Download 536019-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

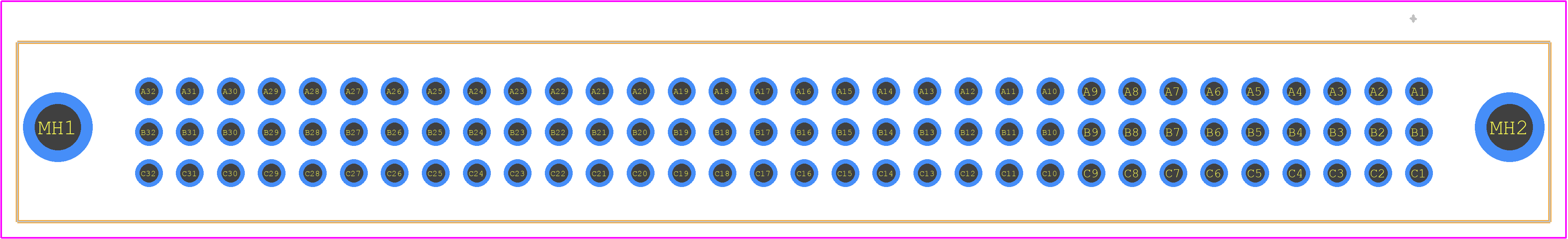

PCB Footprints
536019-5 - TE Connectivity PCB footprint - Other - Other - 536019-5-4
click to zoom
3D Models
536019-5 - TE Connectivity  - 3D model - Other - 536019-5-4
click to zoom

536019-5 Details

  • Manufacturer Part Number:

    536019-5

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6

  • Additional Feature:

    STANDARDS: DIN 41612; IEC 603-2

  • Board Mounting Option:

    COMPLIANT BOARDLOCK

  • Body Breadth:

    0.437 inch

  • Body Depth:

    0.452 inch

  • Body Length:

    3.74 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Resistance:

    15 mΩ

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insertion Force-Max:

    .9174 N

  • Insulation Resistance:

    1000000000000 Ω

  • Insulator Color:

    GRAY

  • Insulator Material:

    GLASS FILLED POLYESTER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    3A

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Name of Rows Loaded:

    C,B,A

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    3

  • Number of Ports:

    1

  • Number of Rows Loaded:

    3

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.54 mm

  • Panel Mount:

    NO

  • Plating Thickness:

    4.99999u inch

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.22 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    96

  • Withdrawl Force-Min:

    .139 N
