53647-1274 - Molex

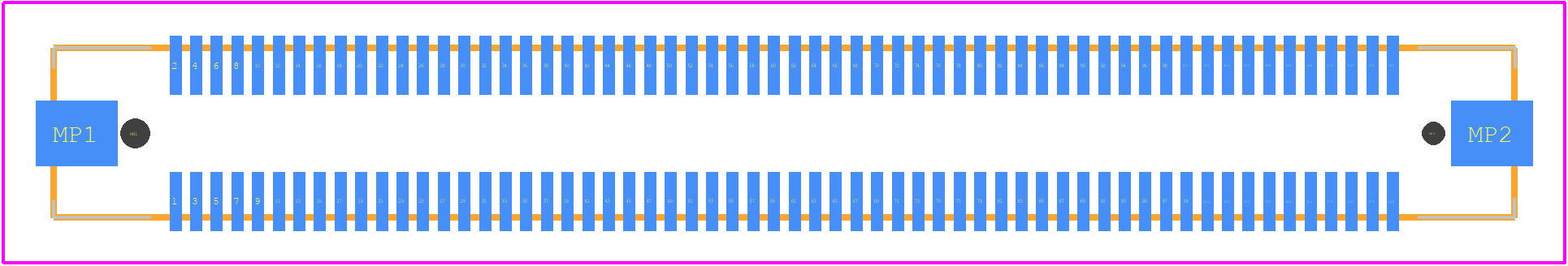

53647-1274 Details

• Manufacturer Part Number:

  53647-1274

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Japan

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Factory Lead Time:

  9 Weeks

• Manufacturer:

  Molex

• YTEOL:

  8

• Board Mounting Option:

  PEG

• Body Breadth:

  0.205 inch

• Body Depth:

  0.28 inch

• Body Length:

  1.77 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  BOARD STACKING CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  Tin (Sn)

• Contact Gender:

  MALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  70 mΩ

• Contact Style:

  CENTRONIC

• Dielectric Withstanding Voltage:

  250VAC V

• Durability:

  50 Cycles

• Filter Feature:

  NO

• Insertion Force-Max:

  0.69 N

• Insulation Resistance:

  1000000000 Ω

• Insulator Color:

  BROWN

• Insulator Material:

  POLYPHENYLENE SULFIDE

• JESD-609 Code:

  e3

• Mating Contact Pitch:

  0.03 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  4.2 mm

• Plating Thickness:

  9.84u inch

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  0.5 A

• Reference Standard:

  UL

• Terminal Pitch:

  0.635 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  120

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  0.118 N
