536L38401IT5 - CTS

Description: CTS Model 536 is a high performance Temperature Compensated Crystal Oscillator [TCXO] suitable for applications requiring tight stability, Stratum 3 performance and more. Employing IC technology with HCMOS output and analog temperature compensation engine; coupled with a fundamental quartz crystal M536 has excellent stability and low jitter/phase noise performance.

Download 536L38401IT5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

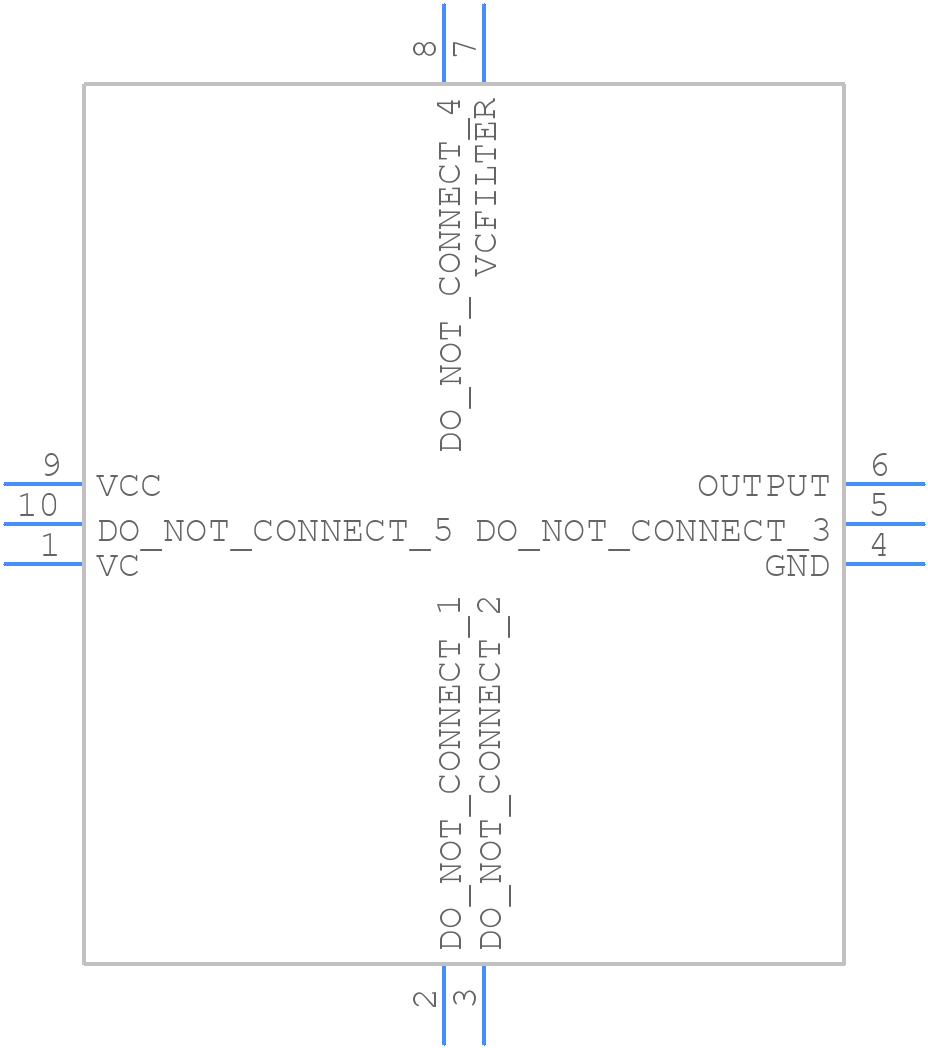

536L38401IT5 - CTS - PCB symbol
click to zoom
PCB Footprints
536L38401IT5 - CTS PCB footprint - Other - Other - 10-SMD, No Lead_2025-2
click to zoom
3D Models
536L38401IT5 - CTS - 3D model - Other - 10-SMD, No Lead_2025-2
click to zoom

536L38401IT5 Details

  • Manufacturer Part Number:

    536L38401IT5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    CTS Corporation

  • YTEOL:

    8.75

  • Aging:

    1 PPM/FIRST YEAR

  • Fall Time-Max:

    8 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    0.1%

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    10

  • Operating Frequency-Nom:

    38.4 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    HCMOS

  • Output Load:

    15 pF

  • Package Equivalence Code:

    LCC10,.12X.2,47

  • Physical Dimension:

    5.0mm x 3.2mm x 2.0mm

  • Rise Time-Max:

    8 ns

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Max:

    3.47 V

  • Supply Voltage-Min:

    3.14 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    55/45 %

  • Terminal Finish:

    Gold Flash (Au) - with Nickel (Ni) barrier

536L38401IT5 Frequently Asked Questions (FAQs)

  • The recommended termination resistance for the 536L38401IT5 is 1 kΩ to ensure proper signal integrity and minimize reflections.
  • While the 536L38401IT5 is rated for industrial temperature range (-40°C to 85°C), it's essential to consider the specific application and ensure the oscillator can operate within the desired temperature range. Consult with CTS Corporation or a qualified engineer for customized solutions.
  • To ensure proper decoupling, use a 0.01 μF to 0.1 μF ceramic capacitor between the VDD pin and GND, and a 10 μF to 22 μF electrolytic capacitor in parallel to filter out noise and ripple.
  • The typical start-up time for the 536L38401IT5 oscillator is around 5 ms to 10 ms, but this can vary depending on the specific application and power-up sequence.
  • Yes, the 536L38401IT5 can be used in designs with multiple power domains, but ensure proper power sequencing and isolation to prevent damage or malfunction.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

536L38401IT5 Overview

Use the download button to access the 536L38401IT5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 536L3, or try a keyword search, such as TCXO
