- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 53984-0681
- Part Number 53984-0681
- Manufacturer Molex
- Pin Count 10
- Part Category Connector
- Package Category Other

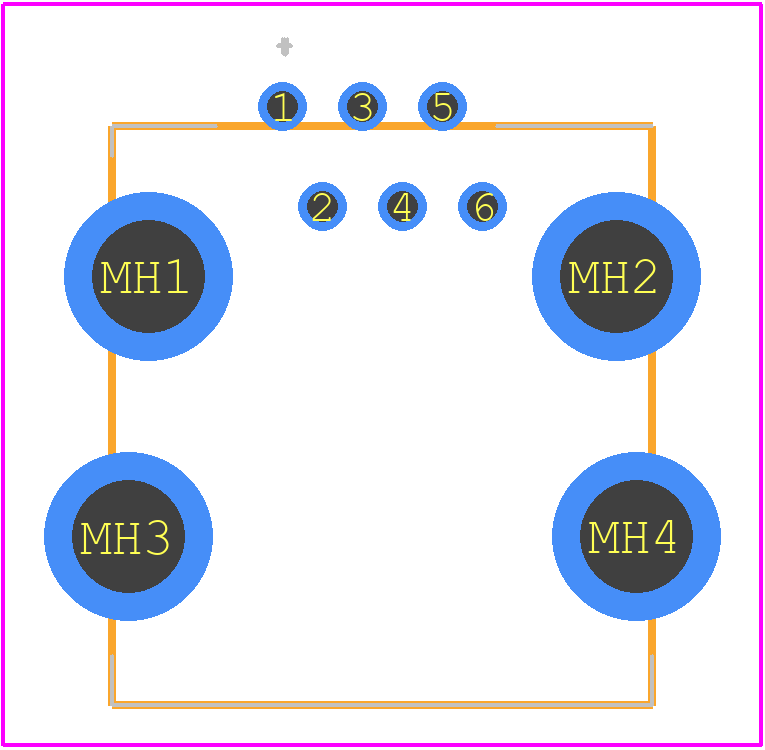

- Footprint Name Other - 53984-0681-4
- Released Date Feb 7, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
53984-0681 Details
-
Manufacturer Part Number:
53984-0681
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Factory Lead Time:
16 Weeks
-
Manufacturer:
Molex
-
Body/Shell Style:
SOCKET
-
Connector Type:
TELECOM AND DATACOM CONNECTOR
-
Contact Finish Mating:
NOT SPECIFIED
53984-0681 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
-
Yes, the 53984-0681 connector is designed to withstand vibrations and is suitable for use in high-vibration applications. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
-
The operating temperature range for the 53984-0681 connector is -40°C to 105°C (-40°F to 221°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.
-
Yes, the 53984-0681 connector is designed to be used in harsh environments and is resistant to moisture, dust, and other contaminants. However, it's essential to follow proper sealing and protection procedures to ensure the connector remains reliable in these environments.
-
While the 53984-0681 connector is designed for use with AWG 20-24 wires, it may be possible to use it with other wire sizes. However, it's essential to consult with Molex or a qualified engineer to ensure the connector can accommodate the desired wire size and meet the required performance and reliability standards.
Trust Checks
Expert Contribution
System Verified
Community Approved
53984-0681 Overview
Use the download button to access the 53984-0681 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 53984,
or try a keyword search, such as Telecom and Datacom Connectors
About Molex
Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
