540-44-032-17-400000 - Mill-Max

Description: MILL MAX - 540-44-032-17-400000 - IC & Component Socket, 32 Contacts, PLCC Socket, 540 Series, Copper Alloy

Download 540-44-032-17-400000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

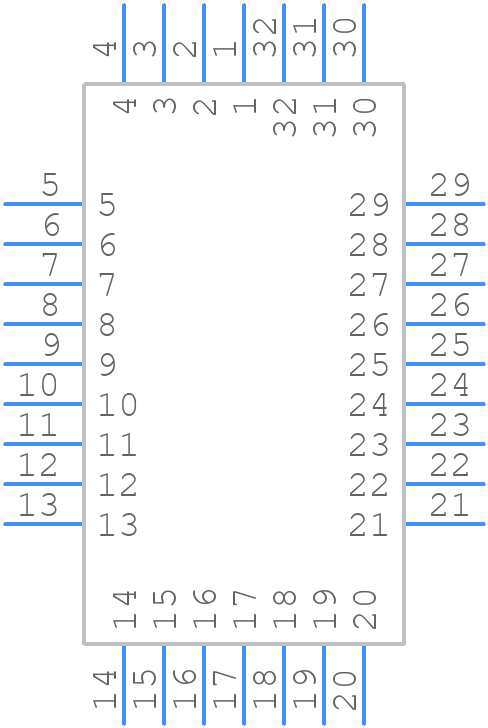

540-44-032-17-400000 - Mill-Max - PCB symbol
click to zoom
PCB Footprints

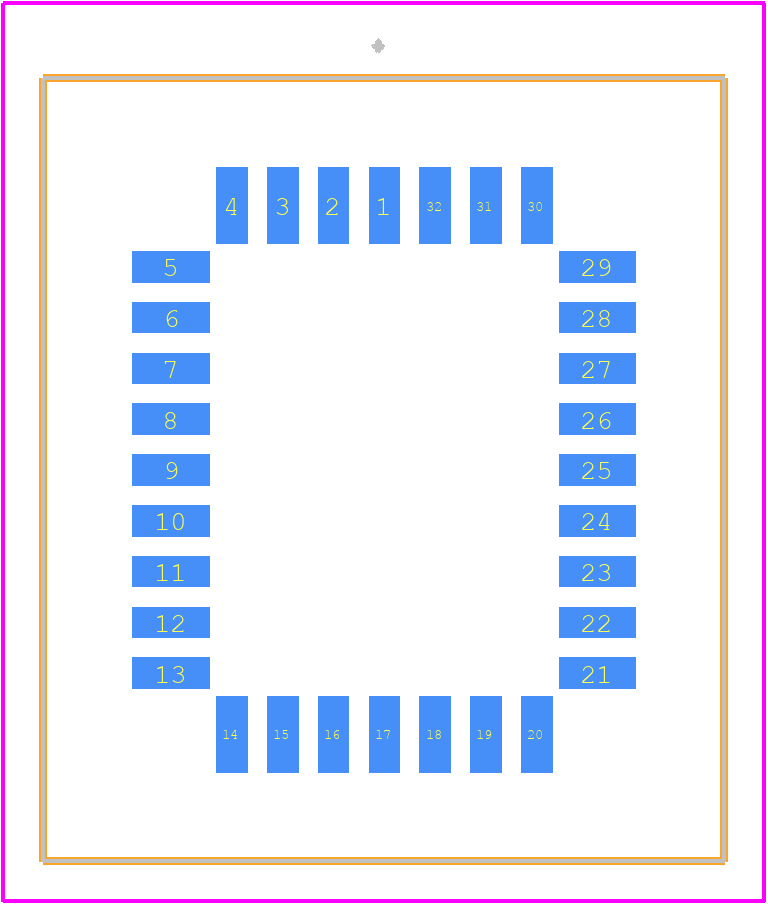

540-44-032-17-400000 - Mill-Max PCB footprint - Other - Other - 540-44-032-17-400000-3
click to zoom
3D Models
540-44-032-17-400000 - Mill-Max - 3D model - Other - 540-44-032-17-400000-3
click to zoom

540-44-032-17-400000 Details

  • Manufacturer Part Number:

    540-44-032-17-400000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Mill-Max Mfg Corp

  • YTEOL:

    6.83

  • Additional Feature:

    END STACKABLE

  • Body Breadth:

    0.67 inch

  • Body Depth:

    0.148 inch

  • Body Length:

    0.77 inch

  • Contact Configuration:

    7X9

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    BELLOWED TYPE

  • Current Rating:

    1 A

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    PLCC32

  • Dielectric Withstanding Voltage:

    600VAC V

  • Housing Material:

    POLYPHENYLENE SULFIDE

  • Insulation Resistance:

    5000000000 Ω

  • JESD-609 Code:

    e3

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • Termination Type:

    SURFACE MOUNT

540-44-032-17-400000 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 in-lbs (0.056-0.169 Nm) to ensure secure connections.
  • Yes, the 540-44-032-17-400000 connector is designed to withstand high-vibration environments, making it suitable for use in applications such as aerospace, automotive, and industrial control systems.
  • Yes, the connector is designed to operate in harsh environments, including extreme temperatures (-40°C to 150°C), humidity, and exposure to chemicals and cleaning solvents.
  • The maximum current rating for the 540-44-032-17-400000 connector is 3A per contact, making it suitable for use in low-power applications such as sensors, switches, and relays.
  • Yes, the connector is designed to accommodate wire sizes ranging from 20 AWG to 26 AWG, but 24 AWG is the recommended wire size for optimal performance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

540-44-032-17-400000 Overview

Use the download button to access the 540-44-032-17-400000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 540-4, or try a keyword search, such as Sockets and Chip Carriers
