540-88-032-24-008 - Preci-Dip

Description: Preci-Dip 1.27mm Pitch Female PLCC Socket, 32 Way, Through Hole, Tin Plated Contacts 1A

Download 540-88-032-24-008 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

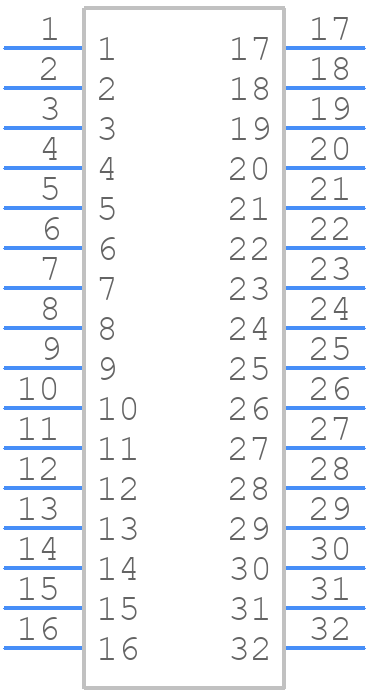

540-88-032-24-008 - Preci-Dip - PCB symbol
click to zoom
PCB Footprints

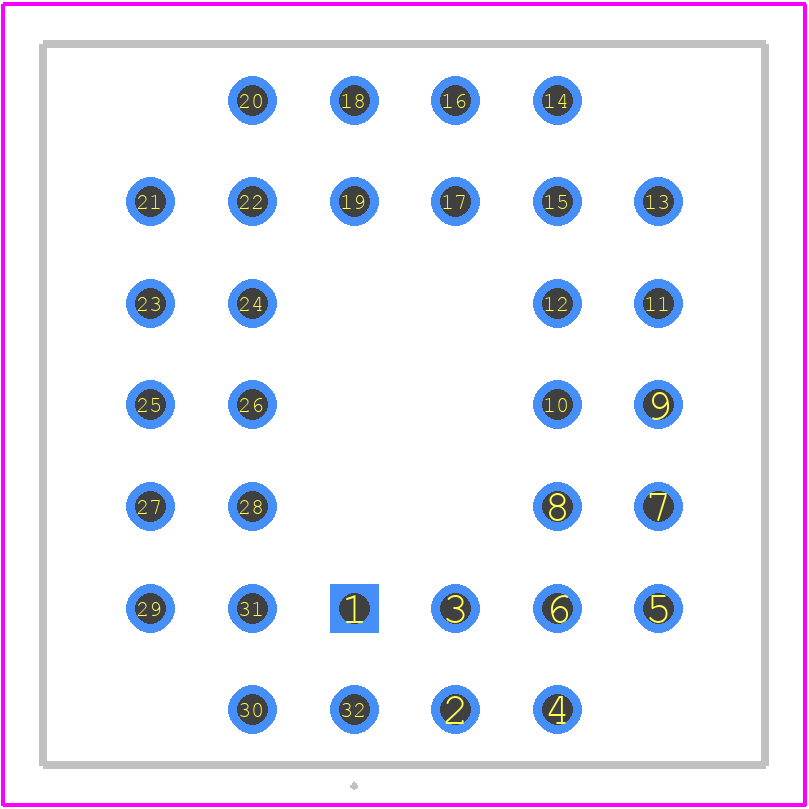

540-88-032-24-008 - Preci-Dip PCB footprint - Other - Other - 540-88-032-24-008-2
click to zoom
3D Models
540-88-032-24-008 - Preci-Dip - 3D model - Other - 540-88-032-24-008-2
click to zoom

540-88-032-24-008 Details

  • Manufacturer Part Number:

    540-88-032-24-008

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    PRECI-DIP SSA

  • YTEOL:

    6.83

  • Contact Finish Mating:

    TIN

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    PHOSPHOR BRONZE

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    PLCC32

  • Housing Material:

    POLYETHYLENE

  • JESD-609 Code:

    e3

  • Number of Contacts:

    32
