5406491-1 - TE Connectivity

Description: Body Features: PCB Ground Tab Location .18 INCH | PCB Ground Tab Location 4.57 MM | Shield Material Copper Zinc Alloy | Modular Jack Latch Orientation Standard - Latch Down | Shield Plating Material Tin over Copper | Connector Profile Standard | Configuration Features: Multiple Port Configuration Ganged | Number of PCB Ground Tabs 3 | Status Light Type Not Illuminated | Port Matrix Configuration 1 x 8 | Number of Panel Ground Tabs 27 | Port Configuration Multiple Ports | Number of Loaded Positions 8 | PCB M

Download 5406491-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5406491-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

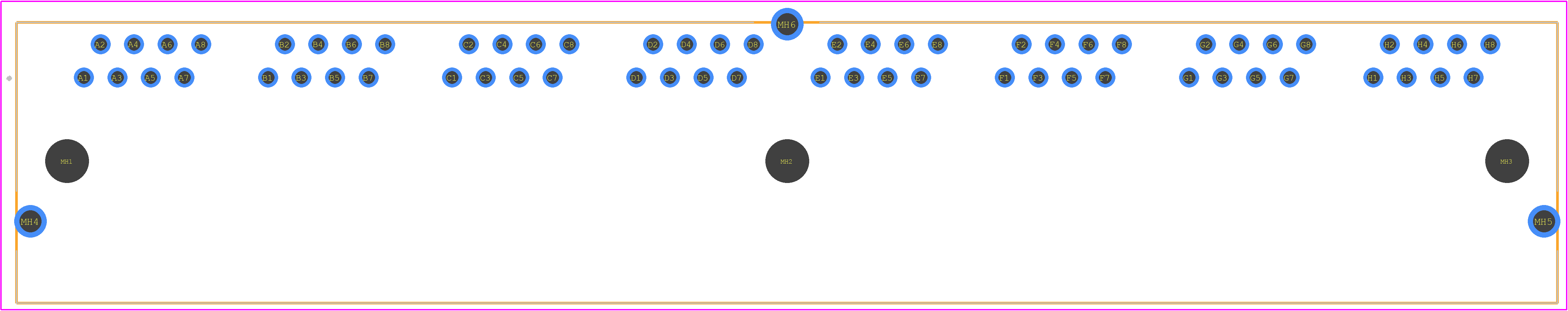

5406491-1 - TE Connectivity PCB footprint - Other - Other - 5406491-1-1
click to zoom
3D Models
5406491-1 - TE Connectivity - 3D model - Other - 5406491-1-1
click to zoom

5406491-1 Details

  • Manufacturer Part Number:

    5406491-1

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    7 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Body Depth:

    0.537 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    YES

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYAMIDE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    PANEL

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    50u inch

  • Rated Current (Signal):

    1.5 A

  • Reference Standard:

    UL

  • Shell Finish:

    TIN

  • Shell Material:

    COPPER-ZINC ALLOY

  • Terminal Length:

    0.14 inch

  • Terminal Pitch:

    1.02 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

5406491-1 Frequently Asked Questions (FAQs)

  • The recommended torque specification for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs). It's essential to follow this specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 5406491-1 connector is designed to withstand high-vibration environments. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 5406491-1 connector has a IP67 rating, making it suitable for outdoor or harsh environmental applications. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating.
  • The 5406491-1 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure the connector is used within this range to maintain its performance and reliability.
  • Yes, the 5406491-1 connector is designed to be compatible with other TE Connectivity products and accessories. However, it's essential to verify compatibility and follow proper installation procedures to ensure reliable connections.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5406491-1 Overview

Use the download button to access the 5406491-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 54064, or try a keyword search, such as Telecom and Datacom Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
