5406528-1 - TE Connectivity

Description: Body Features: Modular Jack Latch Orientation Inverted - Latch Up | Connector Profile Standard | Configuration Features: Status Light Type Not Illuminated | Port Matrix Configuration 1 x 4 | PCB Mount Orientation Right Angle | Number of Loaded Positions 8 | Multiple Port Configuration Ganged | Number of Positions 8 | Port Configuration Multiple Ports | Connector Contact Density Standard | Contact Features: Contact Mating Area Plating Material Thickness 1.27 MICM | Contact Mating Area Plating Material Gold |

Download 5406528-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

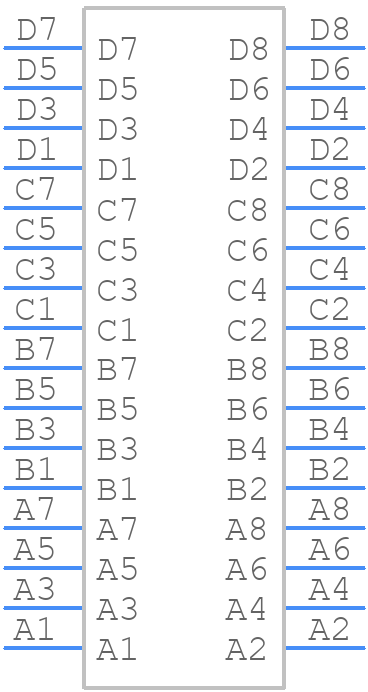

5406528-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

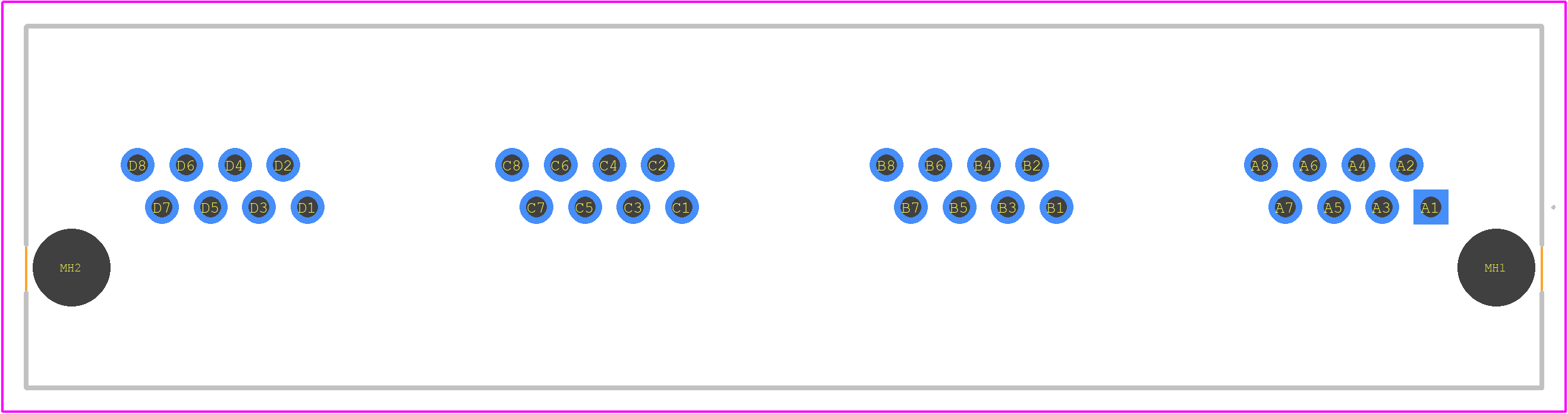

5406528-1 - TE Connectivity PCB footprint - Other - Other - 5406528-1-3
click to zoom
3D Models
5406528-1 - TE Connectivity - 3D model - Other - 5406528-1-3
click to zoom

5406528-1 Details

  • Manufacturer Part Number:

    5406528-1

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    12 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • Body Depth:

    0.505 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYAMIDE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1.5A

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    50u inch

  • Rated Current (Signal):

    1.5 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.1 inch

  • Terminal Pitch:

    1.02 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

5406528-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 5406528-1 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as transportation, industrial, and aerospace.
  • The operating temperature range for the 5406528-1 connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector operates within this temperature range to maintain its performance and reliability.
  • The 5406528-1 connector has a IP67 rating, which means it is protected against dust and temporary immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's not recommended for exposure to harsh chemicals. If you need to use the connector in a chemically harsh environment, consult with TE Connectivity or a qualified engineer for guidance.
  • The 5406528-1 connector is rated for a maximum current of 13A per contact. If you need to use the connector for higher current applications, consult with TE Connectivity or a qualified engineer to determine the feasibility and potential derating requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5406528-1 Overview

Use the download button to access the 5406528-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 54065, or try a keyword search, such as Telecom and Datacom Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
