5435802-4 - TE Connectivity

Description: DIP & SIP Switches, Switch, Gold, Black Housing, Polyester GF, 5 Switch, -55 – 105 °C, DIP, Piano (Side Actuated) Actuator Style, Alcoswitch 7000

Download 5435802-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

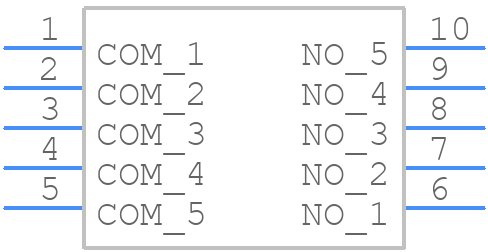

Symbol
5435802-4 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
5435802-4 - TE Connectivity PCB footprint - Other - Other - 5435802-4-3
click to zoom
3D Models
5435802-4 - TE Connectivity - 3D model - Other - 5435802-4-3
click to zoom

5435802-4 Details

  • Manufacturer Part Number:

    5435802-4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Actuator Type:

    PIANO TYPE

  • Additional Feature:

    LOW PROFILE

  • Body Height:

    7.36 mm

  • Body Length or Diameter:

    14.73 mm

  • Contact Current(AC)-Max:

    1.5 A

  • Contact Current(DC)-Max:

    1.5 A

  • Contact Voltage(DC)-Max:

    50 V

  • End Contact Material:

    COPPER ALLOY

  • End Contact Plating:

    TIN

  • Housing Material:

    GLASS FILLED POLYESTER

  • Mounting Feature:

    THROUGH HOLE-RIGHT ANGLE

  • Number of Positions:

    5

  • Number of Switch Sections:

    5

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Packing Method:

    TUBE

  • Surface Mount:

    NO

  • Switch Action:

    MOMENTARY

  • Switch Function:

    SPST

  • Switch Type:

    PIANO DIP SWITCH

  • Terminal Length:

    0.14 inch

  • Termination Type:

    WIRE

5435802-4 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure reliable connections and prevent damage to the connector.
  • Yes, the 5435802-4 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as rail, aerospace, and industrial control systems.
  • The 5435802-4 connector has a IP67 rating, which means it is protected against dust and water ingress. However, it's essential to ensure proper sealing and protection when using the connector in outdoor environments to maintain its performance and reliability.
  • The operating temperature range of the 5435802-4 connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • Yes, the 5435802-4 connector is designed to operate in high-humidity environments. It meets the IEC 60068-2-30 humidity standard, making it suitable for use in applications such as industrial control systems, medical devices, and automotive systems.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5435802-4 Overview

Use the download button to access the 5435802-4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 54358, or try a keyword search, such as DIP Switches
