FINDER SpA recommends a minimum spacing of 2mm between the relay module and other components on the PCB, and a minimum clearance of 1mm between the relay module and the PCB edge. A recommended PCB layout is available in the FINDER SpA application note AN55001.
To ensure reliable operation in high-vibration environments, FINDER SpA recommends securing the relay module to the PCB using screws or adhesive, and using a vibration-resistant connector or soldering the wires directly to the PCB. Additionally, the relay module should be mounted in a way that minimizes stress on the component.
The maximum switching frequency of the 55.12.9.024.0000 relay module is 20 Hz. Exceeding this frequency may lead to reduced relay lifespan or failure.
The 55.12.9.024.0000 relay module is not designed for safety-critical applications. For safety-critical applications, FINDER SpA recommends using relay modules with specific safety certifications, such as IEC 61508 or EN 50155.
To troubleshoot relay module failures, FINDER SpA recommends checking the input voltage, coil resistance, and contact resistance. Additionally, inspect the relay module for signs of physical damage, overheating, or contamination. Refer to the FINDER SpA application note AN55002 for detailed troubleshooting guidelines.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
55.12.9.024.0000 Overview

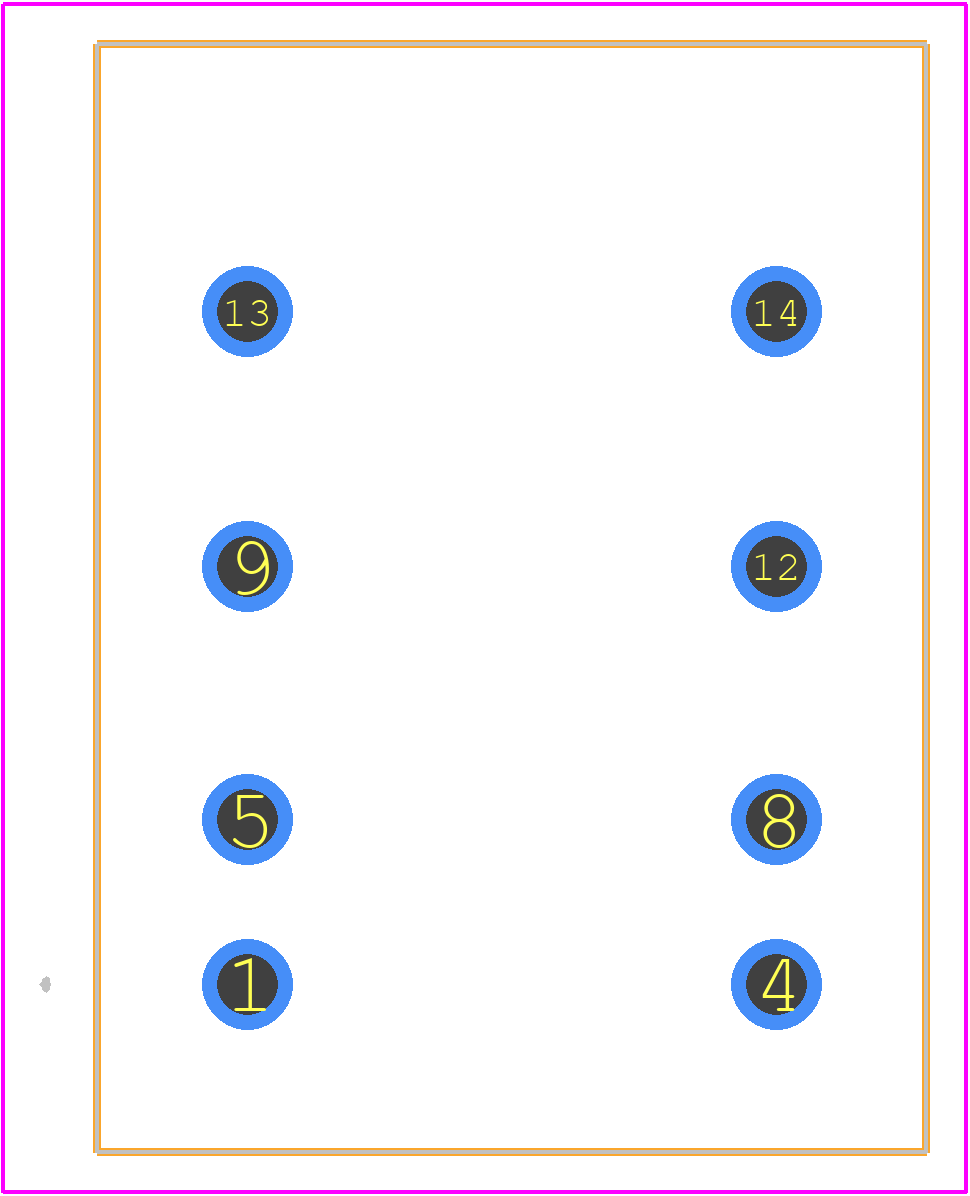

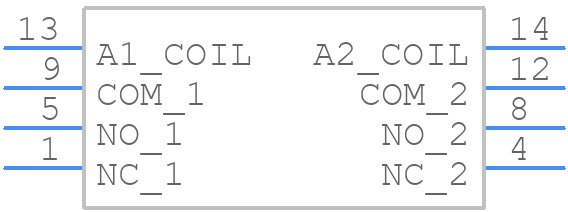

Use the download button to access the 55.12.9.024.0000 schematic symbol, PCB footprint, and 3D model.
