55.13.9.024.0000 - FINDER

55.13.9.024.0000 Details

• Manufacturer Part Number:

  55.13.9.024.0000

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• Manufacturer:

  FINDER SpA

• YTEOL:

  7

• Body Breadth:

  20.7 mm

• Body Height:

  35.8 mm

• Body Length or Diameter:

  27.7 mm

• Coil Current(DC)-Max:

  0.04 A

• Coil Operate Voltage(DC):

  19.2 V

• Coil Power:

  1000 mW

• Coil Release Voltage(DC):

  2.4 V

• Coil Resistance:

  600 Ω

• Coil Voltage(DC)-Max:

  26.4 V

• Coil Voltage-Nom:

  24 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Rating R Load:

  20A@400VAC

• Contact Current(AC)-Max:

  20 A

• Contact Voltage(AC)-Max:

  400 V

• Contact/Output Supply Type:

  AC

• Electrical Life:

  200000 Cycle(s)

• End Contact Material:

  Silver Nickel

• Input Switching Control Type:

  Random

• Mounting Feature:

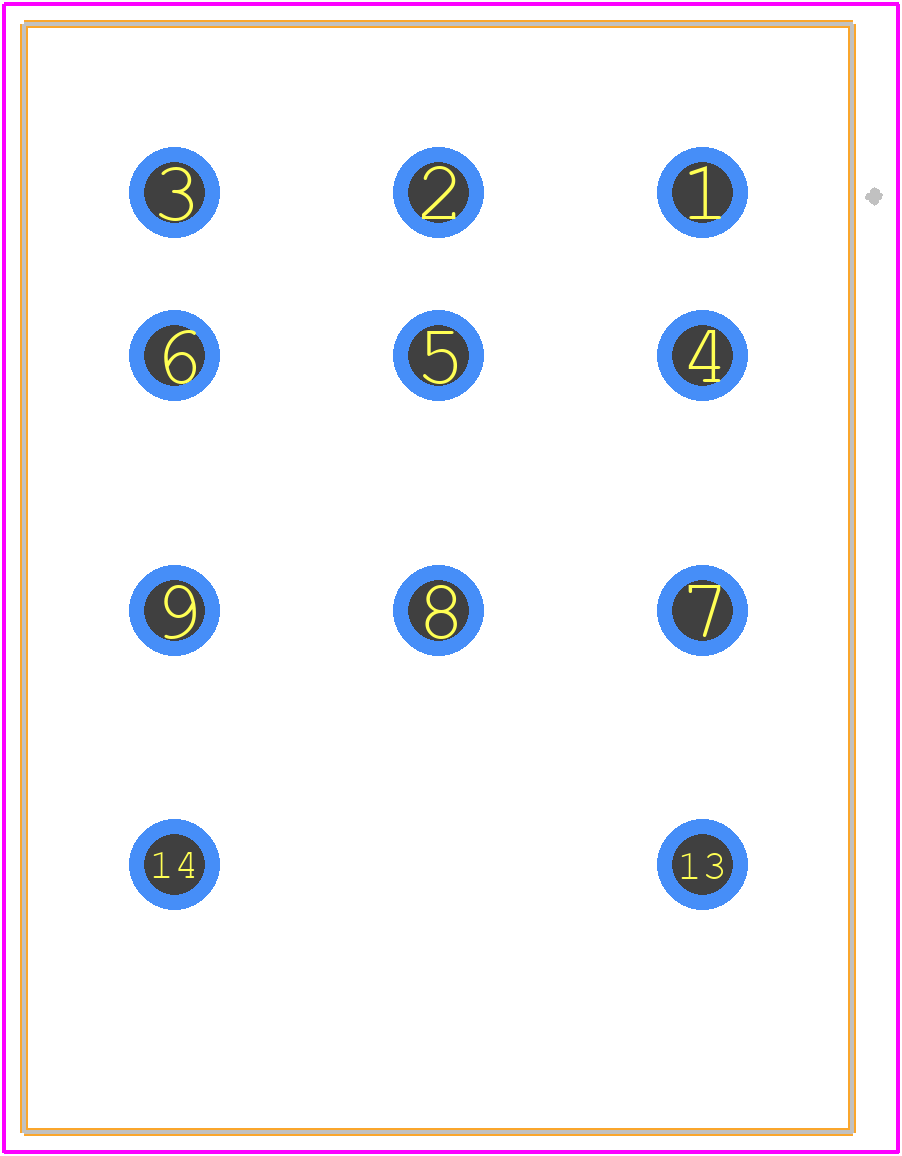

  THROUGH HOLE-STRAIGHT

• Number of Terminals:

  11

• Operate Time:

  10 ms

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Physical Dimension:

  27.7mm x 20.7mm x 35.8mm

• Reference Standard:

  ANCE; CCC; CSA; CUL; DEMKO; FIMKO; GOST; IMQ; LR; NEMKO; RINA

• Relay Action:

  MOMENTARY

• Relay Form:

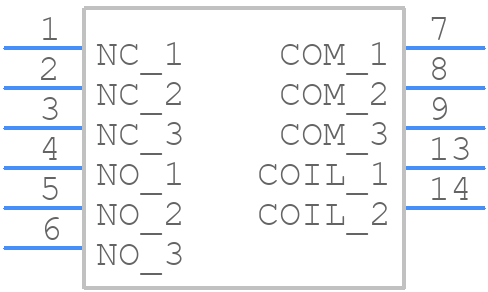

  3 FORM C

• Relay Function:

  3PDT

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  5 ms

• Sealing:

  RT1

• Surface Mount:

  NO

• Terminal Length:

  0.004800609601219203 inch

• Termination Type:

  SOLDER
