55.14.8.024.0000 - FINDER

Description: 4CO, 4PDT PCB Mount Non-Latching Relay Through Hole, 7 A, 24V ac

Download 55.14.8.024.0000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

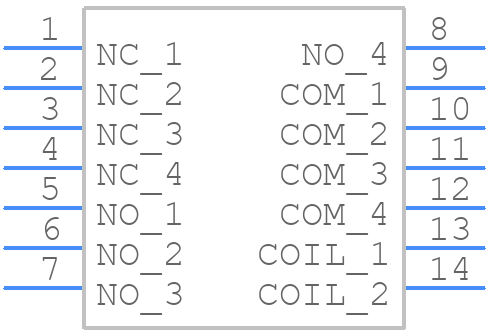

55.14.8.024.0000 - FINDER - PCB symbol
click to zoom
PCB Footprints

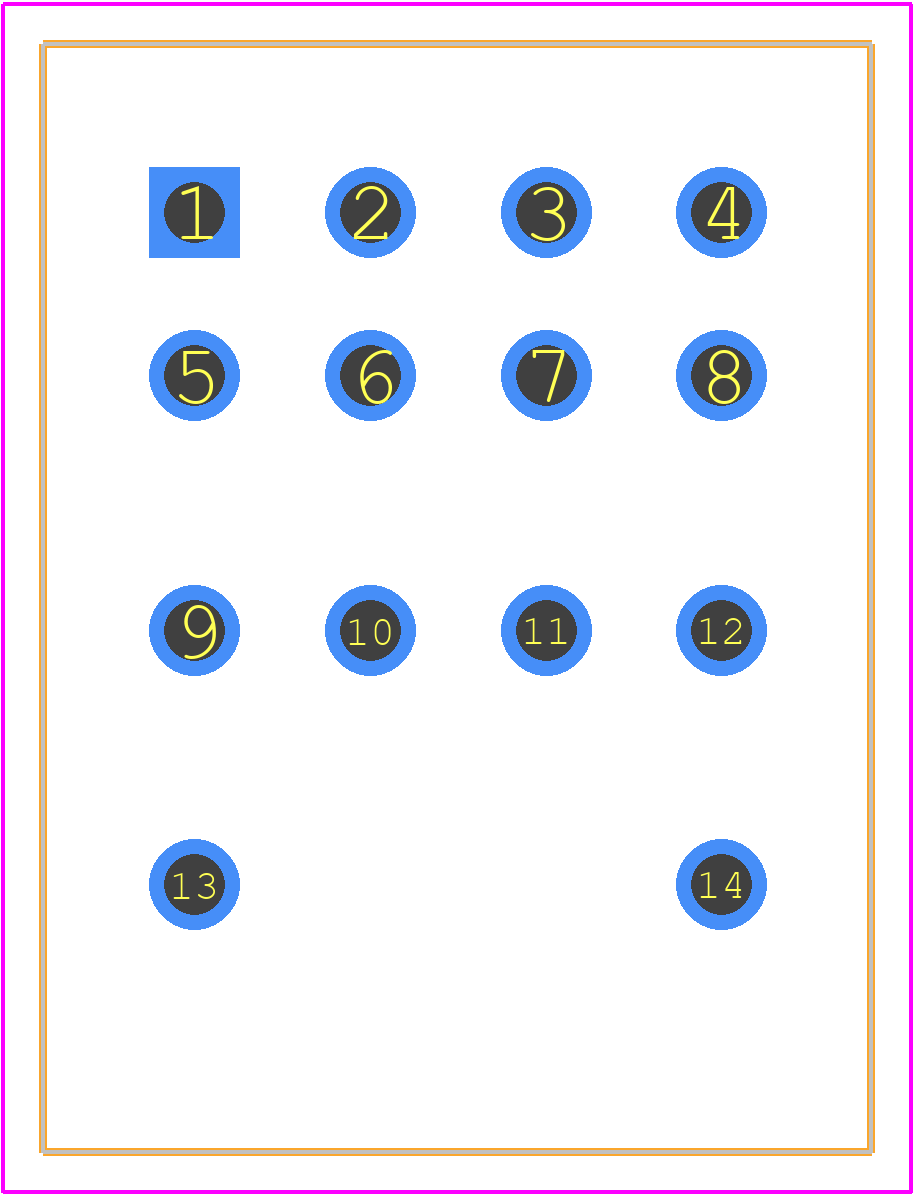

55.14.8.024.0000 - FINDER PCB footprint - Other - Other - 55.14.8.024.0000-1
click to zoom
3D Models
55.14.8.024.0000 - FINDER - 3D model - Other - 55.14.8.024.0000-1
click to zoom

55.14.8.024.0000 Details

  • Manufacturer Part Number:

    55.14.8.024.0000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    FINDER SpA

  • Body Breadth:

    20.7 mm

  • Body Height:

    35.8 mm

  • Body Length or Diameter:

    27.7 mm

  • Coil Current(AC)-Max:

    0.053 A

  • Coil Operate Voltage(AC):

    19.2 V

  • Coil Power:

    1500 mW

  • Coil Release Voltage(AC):

    4.8 V

  • Coil Resistance:

    190 Ω

  • Coil Voltage(AC)-Max:

    26.4 V

  • Coil Voltage-Nom:

    24 V

  • Coil/Input Supply Type:

    AC

  • Contact (AC) Max Rating R Load:

    15A@250VAC

  • Contact Current(AC)-Max:

    15 A

  • Contact Voltage(AC)-Max:

    250 V

  • Contact/Output Supply Type:

    AC

  • Electrical Life:

    150000 Cycle(s)

  • End Contact Material:

    Silver Nickel

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Number of Terminals:

    14

  • Operate Time:

    11 ms

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Physical Dimension:

    27.7mm x 20.7mm x 35.8mm

  • Reference Standard:

    ANCE; CCC; CSA; CUL; DEMKO; FIMKO; GOST; IMQ; LR; NEMKO; RINA

  • Relay Action:

    MOMENTARY

  • Relay Form:

    4 FORM C

  • Relay Function:

    4PDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    3 ms

  • Sealing:

    RT1

  • Surface Mount:

    NO

  • Terminal Length:

    0.004800609601219203 inch

  • Termination Type:

    SOLDER

55.14.8.024.0000 Frequently Asked Questions (FAQs)

  • The maximum switching frequency of the 55.14.8.024.0000 relay module is 20 Hz, as specified in the datasheet. However, it's recommended to consult with FINDER's technical support for specific application requirements.
  • The 55.14.8.024.0000 relay module is designed to operate within a temperature range of -40°C to 85°C. While it can tolerate high temperatures, it's essential to ensure proper cooling and ventilation to prevent overheating and ensure reliable operation.
  • FINDER recommends using a wire size of 0.5 mm² to 2.5 mm² (AWG 20 to AWG 14) and a wire type that meets the requirements of IEC 60344 or equivalent standards. It's also important to ensure that the wire is rated for the maximum voltage and current of the relay module.
  • The 55.14.8.024.0000 relay module is designed to meet the requirements of IEC 61810-1 and EN 61810-1 for safety-related applications. However, it's essential to consult with FINDER's technical support and perform a thorough risk assessment to ensure that the relay module meets the specific safety requirements of your application.
  • The expected lifespan of the 55.14.8.024.0000 relay module is approximately 100,000 to 200,000 switching cycles, depending on the operating conditions and load characteristics. Regular maintenance and inspection can help extend the lifespan of the relay module.
