55.14.9.012.0000 - FINDER

Description: 4CO, 4PDT PCB Mount Non-Latching Relay Through Hole, 7 A, 12V dc

Download 55.14.9.012.0000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

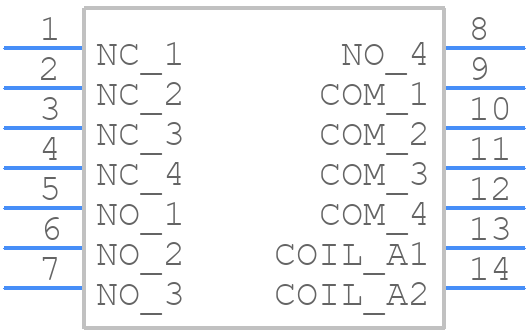

Symbol
55.14.9.012.0000 - FINDER - PCB symbol
click to zoom

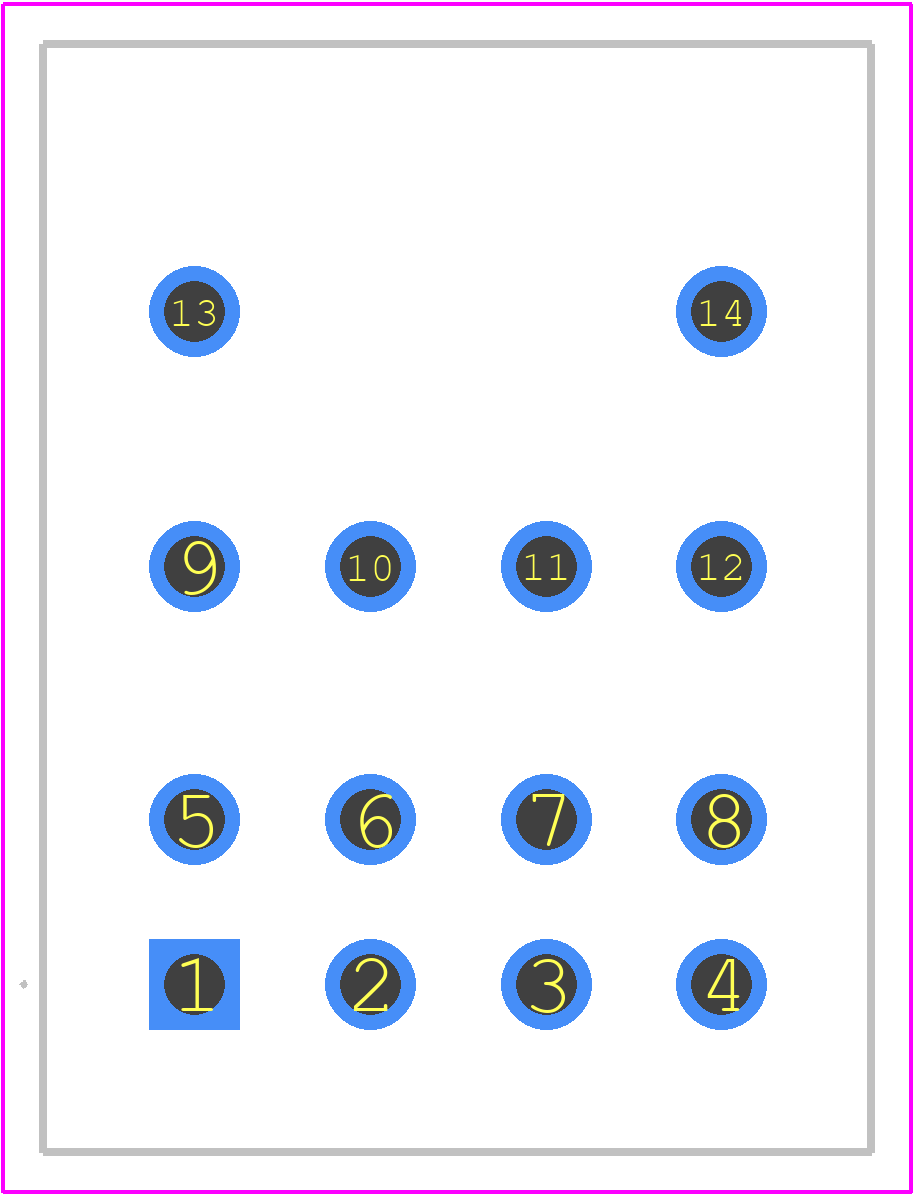

PCB Footprints
55.14.9.012.0000 - FINDER PCB footprint - Other - Other - 55.14.9.012.0000-3
click to zoom
3D Models
55.14.9.012.0000 - FINDER - 3D model - Other - 55.14.9.012.0000-3
click to zoom

55.14.9.012.0000 Details

  • Manufacturer Part Number:

    55.14.9.012.0000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    FINDER SpA

  • YTEOL:

    6

  • Body Breadth:

    20.7 mm

  • Body Height:

    35.8 mm

  • Body Length or Diameter:

    27.7 mm

  • Coil Current(DC)-Max:

    0.086 A

  • Coil Operate Voltage(DC):

    9.6 V

  • Coil Power:

    1000 mW

  • Coil Release Voltage(DC):

    1.2 V

  • Coil Resistance:

    140 Ω

  • Coil Voltage(DC)-Max:

    13.2 V

  • Coil Voltage-Nom:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    15A@250VAC

  • Contact Current(AC)-Max:

    15 A

  • Contact Voltage(AC)-Max:

    250 V

  • Contact/Output Supply Type:

    AC

  • Electrical Life:

    150000 Cycle(s)

  • End Contact Material:

    Silver Nickel

  • Input Switching Control Type:

    Random

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Number of Terminals:

    14

  • Operate Time:

    11 ms

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Physical Dimension:

    27.7mm x 20.7mm x 35.8mm

  • Reference Standard:

    ANCE; CCC; CSA; CUL; DEMKO; FIMKO; GOST; IMQ; LR; NEMKO; RINA

  • Relay Action:

    MOMENTARY

  • Relay Form:

    4 FORM C

  • Relay Function:

    4PDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    3 ms

  • Sealing:

    RT1

  • Surface Mount:

    NO

  • Terminal Length:

    0.004800609601219203 inch

  • Termination Type:

    SOLDER

55.14.9.012.0000 Frequently Asked Questions (FAQs)

  • The maximum switching frequency of the 55.14.9.012.0000 relay module is 20 Hz, as specified by FINDER SpA. Exceeding this frequency may lead to reduced relay lifespan or malfunction.
  • The 55.14.9.012.0000 relay module is designed to operate within a temperature range of -40°C to 85°C. While it can tolerate high temperatures, it's essential to ensure proper cooling and ventilation to prevent overheating, which can affect relay performance and lifespan.
  • FINDER SpA recommends using a twisted pair wire with a minimum of 0.5 mm² cross-sectional area for connections. It's also essential to follow proper wiring and connection techniques to prevent electromagnetic interference (EMI) and ensure reliable operation.
  • The 55.14.9.012.0000 relay module meets the requirements for safety-critical applications, such as those requiring IEC 61508 SIL 2 or EN 50129 SIL 2 certification. However, it's crucial to consult with FINDER SpA and conduct thorough testing to ensure the relay module meets the specific safety requirements of your application.
  • The 55.14.9.012.0000 relay module has a conformal coating to protect against humidity and moisture. However, it's still essential to follow proper installation and sealing guidelines to prevent water ingress and ensure reliable operation in humid or wet environments.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

55.14.9.012.0000 Overview

Use the download button to access the 55.14.9.012.0000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 55.14, or try a keyword search, such as Power/Signal Relays
