550-2407-004F - Dialight

Description: Dialight 550-2407-004F, Red Right Angle PCB LED Indicator, 4 LEDs, Through Hole 2.2 V

Download 550-2407-004F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

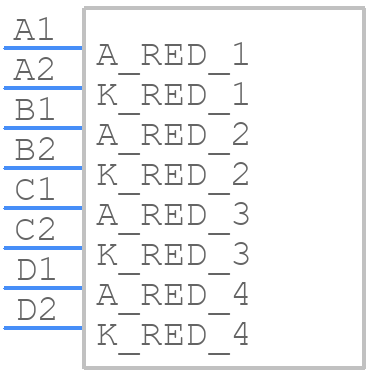

550-2407-004F - Dialight - PCB symbol
click to zoom
PCB Footprints
550-2407-004F - Dialight PCB footprint - Other - Other - 550-2407-004F-6
click to zoom
3D Models
550-2407-004F - Dialight - 3D model - Other - 550-2407-004F-6
click to zoom

550-2407-004F Details

  • Manufacturer Part Number:

    550-2407-004F

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Dialight

  • YTEOL:

    6

  • Color:

    RED

  • Color@Wavelength:

    Orange-Red

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.02 A

  • Forward Voltage-Max:

    2.55 V

  • JESD-609 Code:

    e1

  • Lens Type:

    DIFFUSED

  • Luminous Intensity-Min:

    0.0022 cd

  • Luminous Intensity-Nom:

    6.3 mcd

  • Mounting Feature:

    RADIAL MOUNT

  • Number of Functions:

    4

  • Number of LEDs in Array:

    4

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Optoelectronic Device Type:

    SINGLE COLOR LED ARRAY

  • Overall Height:

    5.97 mm

  • Packing Method:

    BULK

  • Peak Wavelength:

    650 nm

  • Shape:

    ROUND

  • Size:

    5 mm

  • Surface Mount:

    NO

  • T-code:

    T-1 3/4

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Pitch:

    2.54 mm

  • Viewing Angle:

    50 deg

550-2407-004F Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 550-2407-004F is -40°C to 85°C, although it can withstand storage temperatures from -40°C to 100°C.
  • Yes, the 550-2407-004F is suitable for outdoor use, as it has a IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes.
  • The typical lifespan of the 550-2407-004F LED indicator is 50,000 hours, although this can vary depending on operating conditions and environmental factors.
  • Yes, the 550-2407-004F is designed to withstand high-vibration applications, with a vibration resistance of 10-2000 Hz, 10G peak acceleration.
  • Yes, the 550-2407-004F LED indicator is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in the European Union and other regions with similar regulations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

550-2407-004F Overview

Use the download button to access the 550-2407-004F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 550-2, or try a keyword search, such as Visible LEDs
