550-5107F - Dialight

Description: Dialight 550-5107F, Red Right Angle PCB LED Indicator, Through Hole 2.55 V

Download ECAD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

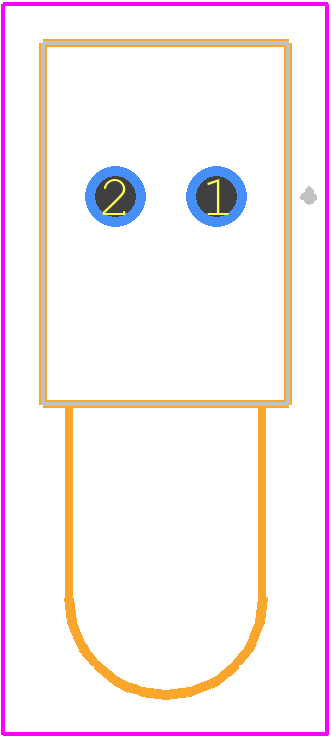

550-5107F - Dialight PCB footprint - Other - Other - 550-5107F-2
click to zoom

550-5107F Details

  • Manufacturer Part Number:

    550-5107F

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-2

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Dialight

  • Risk Rank:

    1.06

  • Samacsys Modified On:

    2020-08-22 15:34:50

  • YTEOL:

    7.72

  • Additional Feature:

    HIGH RELIABILITY

  • Color:

    RED

  • Color@Wavelength:

    Red

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    2 V

  • JESD-609 Code:

    e1

  • Lens Type:

    DIFFUSED

  • Luminous Intensity-Nom:

    34.0 mcd

  • Mounting Feature:

    RADIAL MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    SINGLE COLOR LED

  • Overall Height:

    6.22 mm

  • Packing Method:

    BULK

  • Peak Wavelength:

    650 nm

  • Shape:

    ROUND

  • Size:

    5 mm

  • Subcategory:

    Visible LEDs

  • Surface Mount:

    NO

  • T-code:

    T-1 3/4

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Pitch:

    2.54 mm

  • Viewing Angle:

    50 deg
